Full Motion Articulating TV Wall Mount Bracket - 17 IN - 55 IN || 19.5' Swing Arm
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-5 | 6-9 | 10-14 | 15-19 | 20+ |
| $37.15 | $34.98 | $33.34 | $32.56 | $31.82 |

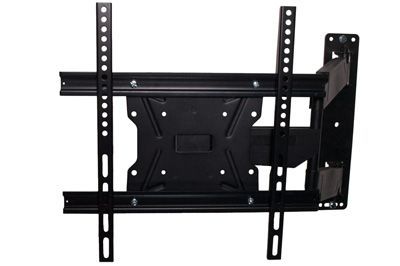

Full Motion Articulating TV Wall Mount Bracket - 17 IN - 55 IN || 19.5' Swing Arm
This mount was designed to provide the ultimate viewing options. Use the 19.5' articulating arms, tilt or swivel to move the TV into the exact position you want. Perfect for installing TV in corners. This, heavy duty bracket, supports up to 77 lbs and TVs up to 55'.
Features:
- Supports up to 77 lbs
- Supports TVs between 17' - 55'
- Maximum VESA 400x400 Mounting Pattern
- Tilt: -3°/+12°
- +/-3° Degrees Level Rotation
- Built in cable management
- Mounts to a single stud
- Color: Black
Please note: The compatible TV sizes listed here are a guide. It does not guarantee compatibility. To fully determine if your TV is compatible with this mount, check the VESA pattern and the weight on your TV.
Proposition 65
WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
RoHS*
Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment in the European Union. It stands for Restriction of Hazardous Substances Directive.
REACH*
REACH, a European Union regulation addresses the production and use of chemical substances and their potential impacts on both human health and the environment. It stands for Registration, Evaluation, Authorisation, and Restriction of chemicals.
WEEE*
The WEEE Directive set collection, recycling and recovery targets for all types of electrical goods in the European community. It stands for Wate Electrical and Electronic Equipment Directive.
* The following information is for information purposes only. It does not guarantee that the product adheres to the following standards. Please check the product description for specific certifications.
Q: What size of bracket do I need for my TV?
A: When choosing a bracket compatibility is determined by weight and VESA pattern. The weight of your TV must not exceed the maximum capacity the bracket can hold. Secondly your TV must conform to the proper VESA (see below for an explanation of VESA) pattern. The VESA pattern determines the placing of the screw holes on the TV. Your TV instruction manual should provide which patterns your TV supports.
Although we give a recommended size that does not guarantee compatibility. We provide them as general guidelines.
Q: What is a VESA mounting pattern?
A: VESA mounting pattern technically called VESA Mounting Interface Standard (MIS) is the industry standard for mounting flat panel monitors and TVs. It is widely adopted in the industry and allows for easy compatibility between mounts and TVs.
The smallest VESA configuration is 75mm x 75mm. This means their are four screw holes in a square pattern 75mm apart.
The largest VESA configuration is 800mm x 400mm. The screws are in a rectangular pattern 800mm apart on the long edge and 400mm on the short edge.
Check your instruction manual for the VESA pattern your TV supports.
