DC Power Electrical Connectors - Chassis Mount, Straight, Right Angle

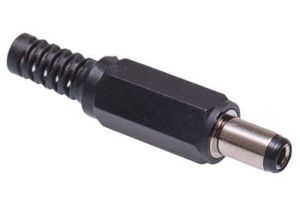

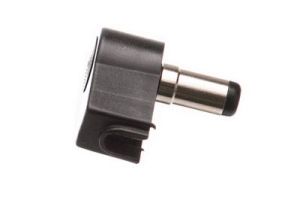

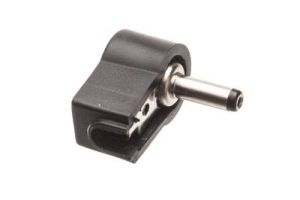

ShowMeCables DC power electrical connectors are available in male (plug) or female (jack) gender configurations, in straight and right-angle body styles. DC power female chassis mount connectors are also in stock. Offered with solder or screw-in terminals for easy field termination. Available with inner and outer diameter combinations including 1.0 mm and 3.8 mm, 1.3 mm and 3.5 mm, 2.1 mm and 5.5 mm, 2.5 mm and 5.5 mm, 0.7 mm and 2.35 mm, and 3.0 mm and 6.3 mm. Many feature a plastic handle.

For a complete range of power connector solutions beyond DC specifications, explore our Power Electrical Connectors - AC & DC category, covering additional power connector types for electronics and equipment power applications.

Related Categories:

FAQs

What are DC power electrical connectors used for?

DC power electrical connectors are typically used with power supplies for laptop computers, small televisions, and other electronic devices. They are available in male (plug) or female (jack) gender configurations to suit different equipment requirements.

What body styles are available for DC power connectors?

DC power connectors are available in straight and right-angle body styles to accommodate various installation needs. A DC power female chassis mount connector is also in stock for applications requiring a panel-mounted connection point.

How are DC power connectors sized for a specific power supply?

DC connectors are specified primarily by their dimensions, specifically inner and outer diameter, to ensure a precise fit with a given power supply and device. Matching these dimensions correctly is essential for a secure electrical connection.

What diameter sizes are available for DC power electrical connectors?

DC power electrical connectors are available with inner and outer diameter combinations including 1.0 mm and 3.8 mm, 1.3 mm and 3.5 mm, 2.1 mm and 5.5 mm, 2.5 mm and 5.5 mm, 0.7 mm and 2.35 mm, and 3.0 mm and 6.3 mm. This range supports a wide variety of equipment requirements.

What termination options are available for DC power connectors?

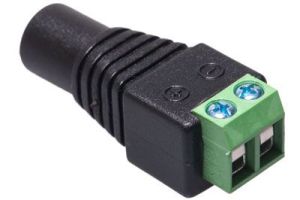

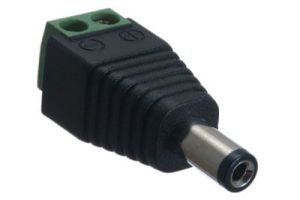

DC power connectors are offered with solder or screw-in terminals for easy field termination. This allows installers to choose the termination method that best supports their specific installation and assembly process.

What is a DC power female chassis mount connector used for?

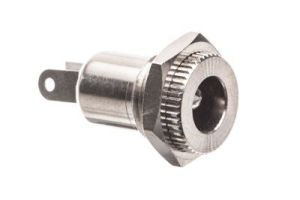

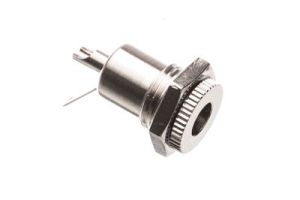

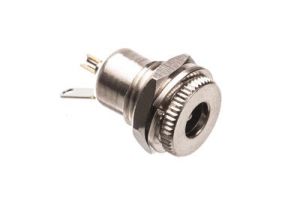

A DC power female chassis mount connector is designed to be mounted directly to a device chassis or enclosure, providing a fixed power input point. ShowMeCables stocks these connectors alongside standard straight and right-angle DC connector options.

Do DC power connectors come with a plastic handle?

Many DC power connectors feature a plastic handle, which makes the connector easier to grip when plugging or unplugging from a device. This feature adds convenience during routine connection and disconnection of DC-powered equipment.



Need help selecting the right DC power electrical connector for your project? Our technical team provides support on gender selection (plug vs jack), body style (straight, right-angle, chassis mount), inner/outer diameter matching, and termination method (solder vs screw-in) for your specific power connection needs.

Contact Sales: sales@showmecables.com

Product Technical Support: techsupportrf@infiniteelectronics.com

ShowMeCables has one of the largest in-stock selections of DC power electrical connectors for international and domestic orders. We are a global leader in wired and wireless connectivity products, providing solutions for many major industries, including electronics, medical, industrial automation, military, and telecommunications.
