DIN Connectors – 4 Pin
ShowMeCables 4-pin DIN connectors include standard DIN and mini DIN types in male or female genders, in straight or panel mount designs. Feature easy-to-work-with solder cups, with straight connectors accommodating wires up to 22 AWG and panel-mount connectors accepting wires up to 20 AWG. A 4-pin DIN female solder panel mount connector with 19/32' mounting holes is also available. S-Video 4-pin mini DIN solder connectors feature nickel-plated conductors for video applications.
For a complete range of DIN connector solutions beyond 4-pin specifications, explore our DIN Connectors - 3 to 13 Pin, Panel Mount, Straight, Metal, Plastic category, covering additional pin counts and mounting styles for a variety of connectivity applications.
Related Categories:
- DIN Connectors – 3 Pin
- DIN Connectors – 5 Pin
- DIN Connectors – 6 Pin
- DIN Connectors – 7 Pin
- DIN Connectors – 8 Pin
- DIN Connectors – 13 Pin
FAQs
What are 4-pin DIN connectors used for?
4-pin DIN connectors are economical and lightweight connectors used for general wiring and video connections. They are available in both standard DIN and mini DIN types, in male or female genders, and in straight or panel mount designs to meet different installation needs across a range of equipment.
What is an S-Video 4-pin mini DIN connector used for?
S-Video 4-pin mini DIN solder connectors are commonly used in video applications and offer better signal clarity than standard RCA composite video. These standard-definition video connectors feature nickel-plated conductors, making them a common choice for connecting older video equipment where improved picture quality over composite is needed.
What wire gauge do 4-pin DIN connectors accept?
Straight 4-pin DIN solder connectors are designed to accommodate wires up to 22 AWG, while panel-mount 4-pin DIN connectors can accept wires up to 20 AWG. Selecting the correct connector type ensures compatibility with the wire gauge used in the specific installation.
What housing materials are available for 4-pin DIN connectors?
Straight 4-pin DIN and mini DIN connectors have a plastic housing, while the 4-pin DIN panel-mount connector comes with a metal housing. Housing material selection can be an important factor for durability and mounting requirements depending on the installation environment.
What mounting options are available for 4-pin DIN female connectors?
A 4-pin DIN female solder panel mount connector is available with 19/32' mounting holes, allowing it to be securely panel-mounted into equipment enclosures. This complements the straight connector options for applications requiring a fixed, panel-integrated connection point.
Do 4-pin DIN connectors use solder termination?
Yes, 4-pin DIN male and female connectors feature easy-to-work-with solder cups that simplify the soldering process. Solder cup termination is used across both the straight and panel-mount connector styles in this category.
What genders are available for 4-pin DIN connectors?
4-pin DIN connectors are available in male or female genders, across both standard DIN and mini DIN types. This allows installers to select the correct connector orientation to mate with existing cables or equipment ports.
Need help selecting the right 4-pin DIN connector for your application? Our technical team provides support on standard vs mini DIN selection, straight vs panel mount design, wire gauge compatibility (20-22 AWG), and housing material (plastic vs metal) for your specific wiring or video application.
Contact Sales: sales@showmecables.com
Product Technical Support: techsupportrf@infiniteelectronics.com
ShowMeCables has one of the largest in-stock selections of DIN connectors for international and domestic orders. We are a global leader in wired and wireless connectivity products, providing solutions for many major industries, including electronics, medical, industrial automation, military, and telecommunications.
- 4 Pin DIN Male Solder Connector - Plastic4 Pins | Solder Cups | Plastic | Molded Strain Relief | 22 AWG Wire | 7mm Cable Learn MoreSKU: 1716
Quantity Discount Pricing 1-4 5-9 10-49 50-99 100+ $3.85 $3.47 $3.34 $3.20 $3.04 Quantity available: 1282
- 4 Pin DIN Female Solder Connector - Plastic4 Pins | Solder Cups | Plastic | Molded Strain Relief | 22 AWG Wire | 7mm Cable Learn MoreSKU: 1736
Quantity Discount Pricing 1-4 5-9 10-49 50-99 100+ $5.98 $5.09 $4.65 $4.28 $4.09 Quantity available: 411
- S-Video Male (4 Pin Mini DIN) Solder Connector - PlasticPlastic Body | Nickel Plated | Strain Relief | Solder Type Learn MoreSKU: 1704
Quantity Discount Pricing 1-4 5-9 10-49 50-99 100+ $3.51 $3.15 $2.95 $2.81 $2.58 Quantity available: 1070
- S-Video Female (4 Pin Mini DIN) Solder Connector - PlasticPlastic Body | Nickel Plated | Strain Relief | Solder Type Learn MoreSKU: 1710
Quantity Discount Pricing 1-4 5-9 10-49 50-99 100+ $4.11 $3.62 $3.41 $3.16 $3.02 Quantity available: 2

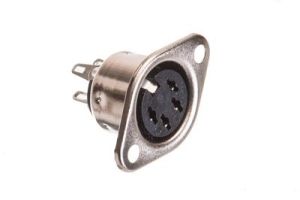

- 4 Pin DIN Female Solder Panel Mount Connector4 Pins | Solder Cups | Metal | Flush Mount Styling | 20 AWG Wire | 19/32' Hole Learn MoreSKU: 1726
Quantity Discount Pricing 1-4 5-9 10-49 50-99 100+ $6.94 $5.82 $5.39 $4.96 $4.62 Quantity available: 3
