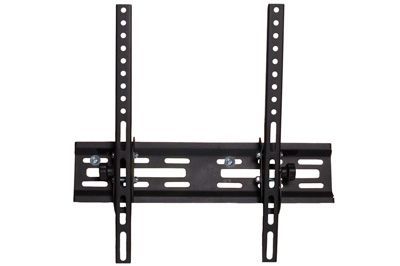

This tilting TV mount bracket tilts 15° for the perfect viewing angle. It is compatible with LCD, LED, or plasma TVs. It supports up to 99lbs and TVs from 26' to 55'. Easy to install almost anywhere, the supplied hardware can be mounted on wood studs, solid brick, or concrete walls.
Features:
Supports up to 99 lbs
Supports TVs between 26' - 55'
Maximum VESA 400x400 Mounting Pattern
Tilt: ± 15°
Bubble Level Included
Color: Black
Please note:The compatible TV sizes listed here are a guide. It does not guarantee compatibility. To fully determine if your TV is compatible with this mount, check the VESA pattern and the weight on your TV.
A: When choosing a bracket compatibility is determined by weight and VESA pattern. The weight of your TV must not exceed the maximum capacity the bracket can hold. Secondly your TV must conform to the proper VESA (see below for an explanation of VESA) pattern. The VESA pattern determines the placing of the screw holes on the TV. Your TV instruction manual should provide which patterns your TV supports.
Although we give a recommended size that does not guarantee compatibility. We provide them as general guidelines.
Q: What is a VESA mounting pattern?
A: VESA mounting pattern technically called VESA Mounting Interface Standard (MIS) is the industry standard for mounting flat panel monitors and TVs. It is widely adopted in the industry and allows for easy compatibility between mounts and TVs.
The smallest VESA configuration is 75mm x 75mm. This means their are four screw holes in a square pattern 75mm apart.
The largest VESA configuration is 800mm x 400mm. The screws are in a rectangular pattern 800mm apart on the long edge and 400mm on the short edge.
Check your instruction manual for the VESA pattern your TV supports.
