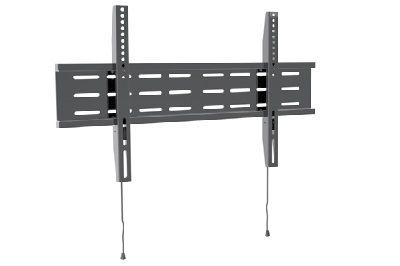

Fixed Ultra Slim TV Wall Mount Bracket - 32 inch - 70 inch
|Quantity Discount Pricing|
Quantity Available: 233
The Ultra-Thin Wall Mount Bracket positions the TV less than 1 inch from the wall for the ultimate integrated look. Supporting up to 88 lbs and 70 inch TVs, this bracket is designed for performance.
- Supports up to 88 lbs
- Supports TVs between 32 inch - 70 inch
- Maximum VESA 400x400 Mounting Pattern
- Low Profile - 1 inch Thickness
- Smart Locking System
- Bubble Level Included
- Color: Black
Please note:The compatible TV sizes listed here are a guide. It does not guarantee compatibility. To fully determine if your TV is compatible with this mount, check the VESA pattern and the weight on your TV.
Q: What size of bracket do I need for my TV?
A: When choosing a bracket compatibility is determined by weight and VESA pattern. The weight of your TV must not exceed the maximum capacity the bracket can hold. Secondly your TV must conform to the proper VESA (see below for an explanation of VESA) pattern. The VESA pattern determines the placing of the screw holes on the TV. Your TV instruction manual should provide which patterns your TV supports.
Although we give a recommended size that does not guarantee compatibility. We provide them as general guidelines.
Q: What is a VESA mounting pattern?
A: VESA mounting pattern technically called VESA Mounting Interface Standard (MIS) is the industry standard for mounting flat panel monitors and TVs. It is widely adopted in the industry and allows for easy compatibility between mounts and TVs.
The smallest VESA configuration is 75mm x 75mm. This means their are four screw holes in a square pattern 75mm apart.
The largest VESA configuration is 800mm x 400mm. The screws are in a rectangular pattern 800mm apart on the long edge and 400mm on the short edge.
Check your instruction manual for the VESA pattern your TV supports.
