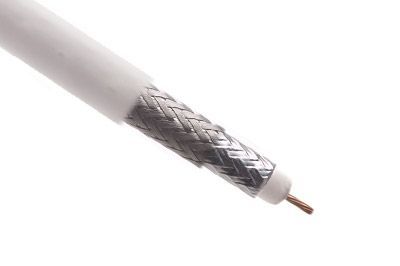

RG59 95% Shield Plenum Coax Cable - BC - White

80-590-145 XX
75 Ohm | 20 AWG | Shielded | PVC | CMP/CL2P Rated | Bare Copper Conductor | UL & ETL Listed

Plenum rated RG59 is designed to meet the strictest of electrical codes; our plenum cable meets or exceeds many common cable standards. RG59 Plenum is commonly used for CCTV, lower power video such as composite video, and RF connections.  This cable features a UL listed CMP PVC jacket. Internally this cable is protected from RFI and EMI interference by a 95% copper braid shield. The center conductor is made from 20 AWG solid copper. RG59 is commonly terminated with an F-Type, BNC, or RCA connector.


  • 75 Ohm
  • 20 AWG Bare Copper Conductor
  • 95% Copper Braid Shield
  • PVC Jacket
  • Plenum
  • CMP/CL2P Rated
  • UL/ETL Listed
  • Professional Grade
  • Foot Markings
  • RoHS Complaint
  • Max Continuous Length: 1000 FT

Please note: All products that are bought per foot are non-returnable.

Any amount of cable you order above the maximum continuous length of 1000 FT will be sent in separate pieces.
