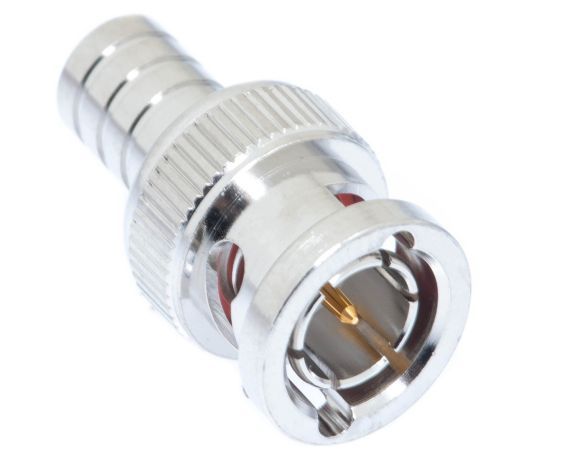

BNC Male Crimp Connector - RG59 & RG62 Plenum

SKU
3031
2 Piece | Male | Nickel Plated | Crimp Type
Quantity Discount Pricing
1-4 5-19 20-99 100-499 500+
$4.43 $4.09 $3.88 $3.69 $3.49

    This 75 ohm BNC crimp connector is a locking RF connector that is used on many types of coaxial cable. BNC connectors are commonly used on test equipment, avionics, analog and serial digital interfaces as well as video signals. BNC crimp connectors require a crimp tool for termination.

    Features:

    • Fits RG59 and RG62 plenum
    • Male
    • Crimp style
    • 75 ohm
    • 2-piece design (connector and ferrule)
    • Nickel-plated connector, gold-plated pin
      Write Your Own Review
      You're reviewing:BNC Male Crimp Connector - RG59 & RG62 Plenum
      Your Rating

      Product Questions

      No questions yet. Be the first to ask the question!

      Q: What is a BNC Connector?

      A: BNC connectors are miniature quick connect/disconnect radio frequency (RF) connectors used for coaxial cable that work with video and ethernet applications.

      Q. What do I need for proper installation?

      A. A coax stripper, coax cable, a crimp tool, and the BNC connector are all that are needed for proper installation.

      Q: What does it mean when a connector says it is 50 ohm or 75 ohm?

      A: BNC connectors are most commonly made in 50 and 75 ohm versions. Video and DS3 Telco central office applications primarily use 75 ohm connectors, while 50 ohm connectors are used for data.

      You can easily tell the difference between the two by looking for the dialectric. The 50 ohm connector features a white dialectric surrounding the center pin, while the 75 ohm BNC connector is surrounded by air (no dialectric).

      50 ohm and 75 ohm BNC connectors will mate with each other. At frequencies under 10 MHz the impedance mismatch will not have any affect. If you are above 10 MHz the chances of signal distortion become more significant.

      Q. What is the benefit of this crimp connector over other styles?

      A. Using the crimp-on method cuts down on installation time as there is no need for soldering. Also, when properly done, a crimp connection is air tight which allows for a maximum performance of the cable and connector. Solid and stranded conductors can be used with a crimp on connector which makes it available to use with many different types of cable.
