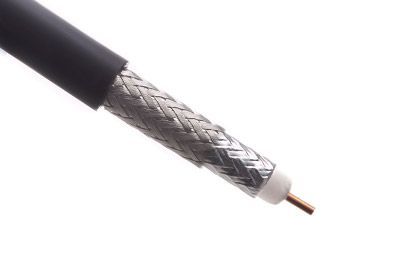

ShowMeCables RG11 Outdoor Coax Cable - CCS - Black
SKU
80-110-560 XX
75 Ohm | 14 AWG | Shielded | PVC | Outdoor Rated | Copper Clad Steel Conductor | UL Listed
The RG11 Outdoor coaxial cable is typically used for cable or satellite service. RG11 has an imdedance of 75 ohms and is used for the longer runs or backboning premise wiring. This RG11 Outdoor cable features a solid 14 AWG copper clad steel center conductor with a 60% aluminum braid and 100% aluminum foil shield. Outdoor rated cables are UV and weather reistant and won't deteriorate like standard PVC cables.
Features:
- RG11
- Outdoor rated
- Impedance - 75 ohm
- Copper clad steel center conductor
- Max Continuous Length: 1000 FT
Please note: All products that are bought per foot are non-returnable.
Any amount of cable you order above the maximum continuous length of 1000 FT will be sent in separate pieces.
Write Your Own Review
Product Questions
| Cable | Cable Type | Jacket | Inner Conductor Material | Inner Conductor Diameter (mm) | Dielectric | Outer Conductor (Shield) | Overall Braid | Bend Radius (mm) | Velocity of Propagation (%) | Dielectric Constant | Impedance | Capacitance | DC Resistance (loop) | Voltage Rating | Frequency Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80-110-560 BK | RG11 | PVC | CCS | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 63.5 Ohms | 60 VDC | 3 GHz |
| 80-110-520 BK | RG11 | PVC | Cu | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 30.43 Ohms | 60 VDC | 3 GHz |
| 80-110-600 BK | RG11 | PE | CCS | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 63.5 Ohms | 60 VDC | 3 GHz |
