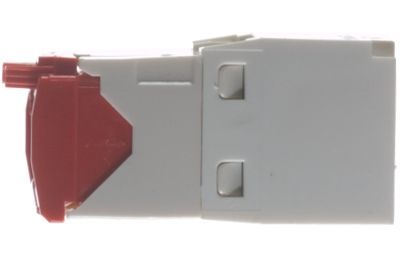

Panduit Cat5e RJ45 Mini-Com Punchdown Jack
SKU
CJ5E88TGXX
8P8C | Tool-Less Termination | Cat5e Rated | Gold-Plated Contacts | Fits Mini-Com Products
Panduit's Mini-Com Cat5e jacks are designed to be used only with Panduit's Mini-Com patch panels, surface-mount boxes, and wall plates. These jacks are an alternative to the keystone-style modules. Panduit Mini-Com jacks are renowned for their high-quality manufacturing, intelligent design, and reliable performance.
Features:
- Connector: RJ45
- Rear Termination: Tool-less
- Color: White
- Meets EIA/TIA Cat5e Standard
- UL-Listed
- Gold 50-micron contacts
Write Your Own Review
Product Questions
| TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks | ||||
| IDC | T568A | T568B | ||
| Terminals | Pair | Wire Color | Pair | Wire Color |
| PIN5 | 1 | White/Blue | 1 | White/Blue |
| PIN4 | Blue | Blue | ||
| PIN1 | 3 | White/Green | 2 | White/Orange |
| PIN2 | Green | Orange | ||
| PIN3 | 2 | White/Orange | 3 | White/Green |
| PIN6 | Orange | Green | ||
| PIN7 | 4 | White/Brown | 4 | White/Brown |
| PIN8 | Brown | Brown | ||
