DISCONTINUED Ortronics Clarity 5E TracJack
SKU
TJ5E00-xx
This product has been discontinued
This product has been replaced by:
Cat5e RJ45 Punchdown Keystone Jack - Dual Row
Category 5e | Category 5e | A/B Universal Wiring | IDC Rear Termination |

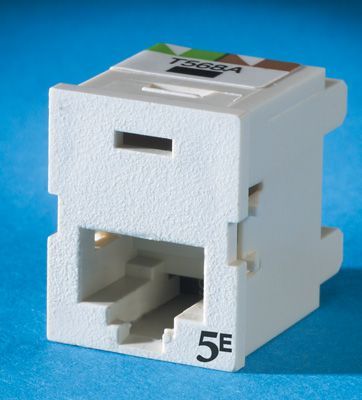

Ortronics Clarity 5E TracJack, T568A/B, 180 degree
The Ortronics Clarity 5E TracJack, T568A/B,180 degree Information Outlet Is a high speed data outlet designed to be installed in a faceplate at the work location. This jack is front- loaded and removeable. It fits all TracJack faceplates and housing units. Center tuned Clarity 5E patch cords for significant performance above Category 5e.
Features:
- Category 5e
- 26-22 AWG
- Easy lace IDC housing
- Universal T568A/B Wiring
- RoHS Compliant
Write Your Own Review
| TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks | ||||
| IDC | T568A | T568B | ||
| Terminals | Pair | Wire Color | Pair | Wire Color |
| PIN5 | 1 | White/Blue | 1 | White/Blue |
| PIN4 | Blue | Blue | ||
| PIN1 | 3 | White/Green | 2 | White/Orange |
| PIN2 | Green | Orange | ||
| PIN3 | 2 | White/Orange | 3 | White/Green |
| PIN6 | Orange | Green | ||
| PIN7 | 4 | White/Brown | 4 | White/Brown |
| PIN8 | Brown | Brown | ||
