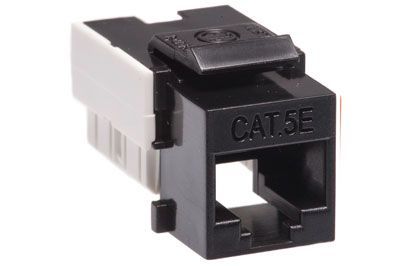

Cat5e RJ45 Punchdown Keystone Jack - Dual Row

SKU
15-530-165 XX
8P8C | Most Popular Style | 110 IDC Termination | Cat5e Rated | Gold-Plated Contact

Designed for easy installation and long-term reliability, these vertical-style Cat5e keystone jacks are perfect for installing Cat5e networks in commercial or residential environments. This standard keystone jack fits any keystone wall plate, patch panel, or mounting box. The color-coded 110-type wiring schemes (568A or 568B) make termination simple.

Features:

  • Connector: RJ45
  • Rear Termination: 110 type IDC
  • Color: Black
  • Meet EIA/TIA Cat 5e Standard
  • TSB 568A or 568B (AT&T 258A) UL-Listed
  • Gold-Plated Contacts
  • Strain Relief Cap Included
Write Your Own Review
You're reviewing:Cat5e RJ45 Punchdown Keystone Jack - Dual Row
Your Rating

Proposition 65

WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

RoHS*

Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment in the European Union. It stands for Restriction of Hazardous Substances Directive.

REACH*
REACH, a European Union regulation addresses the production and use of chemical substances and their potential impacts on both human health and the environment. It stands for Registration, Evaluation, Authorisation, and Restriction of chemicals.

WEEE*

The WEEE Directive set collection, recycling and recovery targets for all types of electrical goods in the European community. It stands for Wate Electrical and Electronic Equipment Directive.

* The following information is for information purposes only. It does not guarantee that the product adheres to the following standards. Please check the product description for specific certifications.

TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks
IDC T568A T568B
Terminals Pair Wire Color Pair Wire Color
PIN5 1 White/Blue 1 White/Blue
PIN4 Blue Blue
PIN1 3 White/Green 2 White/Orange
PIN2 Green Orange
PIN3 2 White/Orange 3 White/Green
PIN6 Orange Green
PIN7 4 White/Brown 4 White/Brown
PIN8 Brown Brown
