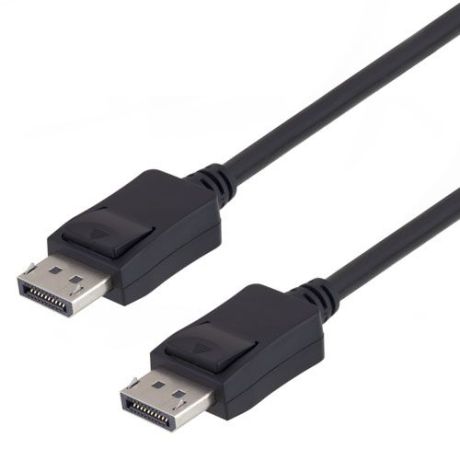

L-Com DisplayPort Cables w/ Pin 20 Connection
30 AWG | Shielded Twisted Pair | Supports HDCP | Up to 2560x1600 resolution | Overall Braid Shield | PVC Jacket | Pin 20 connected for power
L-Com DisplayPort Cables w/ Pin 20 Connection
L-Com DisplayPort cables are the perfect solution for all of your high defenition digital audio and graphics needs. Being the new standard for PC digital display, this cable provides excellent quality materials with unrivaled performance.
Features:
- PVC Jacket
- Supports HDCP
- Up to 2560x1600 resolution
- Smaller connector footprint
- Supports color depth of 6, 8, 10, 12, and 16 bits per component
- Shielded twisted pair
- Overall Braid Shield
- 30 AWG wire
- Pin 20 connected for power
Q: What is the maximum data bandwidth of a DisplayPort cable?
A: Up to a total 17.28 Gbit per second.
Q: Does DisplayPort support audio?
A: Yes from 1 to 8 audio channels.
Q: What is maximum length of a DisplayPort cable?
A: The maximum length of a DisplayPort cable is 3 meters (9 feet) with a passive cable and 33 meters (108 Feet) with active cable.
Q: Is DisplayPort compatible with VGA HDMI or Single-Link DVI?
A: Yes You only need to use a small passive adapter. Find them here.
