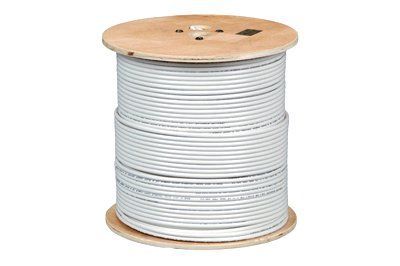

Cat5e + 18/2 Siamese CCTV over IP Cable - 1000 FT
CLOSEOUT PRICING! WHILE SUPPLIES LAST!
24 AWG | 350MHz | 2 Conductor | 18 AWG | UL Listed | CMR Rated | For CCTV Cameras
Quantity Discount Pricing
1-9
10-24
25-99
100-249
250+
$588.99
$554.51
$522.66
$493.47
$461.64
Quantity Available: 2000
The Cat5e plus 18/2 power wire is commonly used for closed-circuit television (CCTV) cameras. Combining both the data and power wire together makes installation quick and easy. The Cat5e cable is made from 24 AWG solid bare copper. Four color-striped pairs make it easy to install and reduces alien crosstalk. The power cable is made from 18 AWG stranded bare copper. The cable is ideal for those installers who desire a clean and easy installation. Save time and money by running both cables at one time. This cable comes on a wooden spool.
Features:
Jacket Fire Retardant Polyvinyl Chloride (FR-PVC) Cat5e Solid 24 AWG Bare Copper Conductors Tested to 350 MHz Meets Cat5e Standards Power 2 Conductors 18AWG Stranded Bare Copper Conductors UL Listed CMR Rated
Specs:
Lan Cable: Conductor: Solid Bare Copper Size: 24AWG Dielectric:Solid PE Insulation: HDPE Average Thickness: 0.205mm Dielectric Thickness: 0.203mm Conductor Diameter: 0.914mm Assembly Diameter: 5.10mm Pair Lay Length: Different Length for cross-talk prevention. Jacket: FRPVC Color White: (Cat5E jacket) Average Thickness: 16.8mm Rip Cord: N/A Power Cable: Conductor: Stranded Bare Copper (16/30) Size: 18AWG Insulation: FRPVC (black/red) Insulation Thickness: 0.228mm Conductor ThicknessL 1.625mm Lay Length: Parallel Jacket: FRPVC (7.4+/- 0.15mm) Color: Black & Red (Coax Jacket) Overall Assembly: Assembly: 18/2+ CAT5eE FRPVC Jacket Material: FRPVC Thickness: 0.558mm Diameter: 5.2*11.3mm Technical Specs: Rated Temp.: 60C Flambility Test: CMR UL 1666 Riser Flame Test Certifications : Electrical Characteristics 18AWG 2/C: Temperature Rating: -20°C to 60°C Operating Voltage: 300 VRMS Mx Max. DC Resistance 20°C: 6.49 Ohms/1M' Nom Capacitane Between Conductors: 24 pF/ft Nom.@1KHz Electrical Characteristics CAt5E 24/4Pair: Temperature Rating: -20°C to 60°C Operating Voltage: 300 VRMS Mx Max. DC Resistance 20°C: 9.38 Ohms/1M' Nom DC Resistance Unbalance: 5% Characteristics Impedance: 85-115 Ohms Velocity Propagation: 66% Pair to Ground Cap. Unbal.: 330 Attenuation (Nom.db/100'): 100 MHz: 21.5; 200 MHz: 31.1 SRL Minimum (db): 23 Loss Min. (db) 23-10log 10(F/20)
