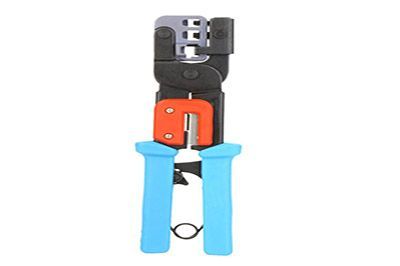

Ratchet Modular Crimping Tool for RJ22, RJ11, RJ12, and RJ45
This all-in-one tool cuts, strips, and crimps telephone cable and silver satin, UTP, and STP Cables. It is used for RJ22, RJ11, RJ12, RJ45 modular plugs. This versatile tool will cut, strip, and crimp your cable. It is a fully ratcheted tool for ease of use.
Features:
Handset Plugs (RJ22)
4, 6, and 8 Position Plugs
Cuts, Strips and Crimps all-in-one
WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov
Q: What is the difference between an RJ11 and an RJ12 connector?
Both connectors are the same size and appear the same. However looking at the contacts an RJ11 will only have 4 contacts. An RJ12 will have 6 contacts.
Q: What are the terms 4P4C 6P4C and 6P6C referring to?
4P4C: 4 Position 4 Conductor (RJ22) - used for Telephone Handset cables.
6P4C: 6 Position 4 Conductor (RJ11) - used for ADSL telephone and modem cables.
6P6C: 6 Position 6 Conductor (RJ12) - used in System phones.
Q: How do I tell if a plug accepts flat or round cable?
Looking at the back of the plug where the cable would insert it will either have an oval shape or a rectangular shape. The rectangular shape accepts flat cable. The oval shape accepts round cable.
Q: What is an RJ45 connector used for?
An RJ45 also named 8P8C connector is most commonly used in network and telecommunication applications. It can also be used for other data type communications such as serial.
Q: What is the difference between a solid and stranded connector?
A solid RJ45 connector has 3 teeth that pinch the solid wire to ensure good contact. A stranded RJ45 connector contains 2 teeth that bite the strands to hold the wire in place. Stranded is typically used when you are making your own patch cables.
