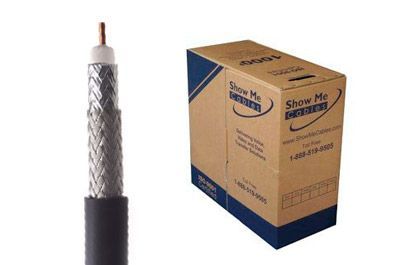

RG11 Direct Burial Coax Cable - CCS - Black - 1000 FT
1000 FT | 75 Ohm | 14 AWG | Shielded | PVC | PE Rated | Copper Clad Steel Conductor | UL Listed
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-1 | 2-4 | 5-9 | 10-14 | 15+ |
| $418.92 | $403.83 | $389.53 | $375.96 | $363.07 |
The RG11 Direct Burial coaxial cable is typically used for cable or satellite service. RG11 has an imdedance of 75 ohms and is used for the longer runs or backboning premise wiring. This RG11 Direct Burial cable features a solid 14 AWG copper clad steel center conductor with a 60% aluminum braid and 100% aluminum foil shield. Direct Burial rated cables are gel-filled, moisture free, and can be buried directly into soil without the use of conduit.
Features:
- 1000 ft. spool
- RG11
- Direct Burial rated
- Impedance - 75 ohm
- Copper clad steel center conductor
| Tariff Percentage | 15% |
|---|
Proposition 65
WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
RoHS*
Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment in the European Union. It stands for Restriction of Hazardous Substances Directive.
REACH*
REACH, a European Union regulation addresses the production and use of chemical substances and their potential impacts on both human health and the environment. It stands for Registration, Evaluation, Authorisation, and Restriction of chemicals.
WEEE*
The WEEE Directive set collection, recycling and recovery targets for all types of electrical goods in the European community. It stands for Wate Electrical and Electronic Equipment Directive.
* The following information is for information purposes only. It does not guarantee that the product adheres to the following standards. Please check the product description for specific certifications.
| Cable | Cable Type | Jacket | Inner Conductor Material | Inner Conductor Diameter (mm) | Dielectric | Outer Conductor (Shield) | Overall Braid | Bend Radius (mm) | Velocity of Propagation (%) | Dielectric Constant | Impedance | Capacitance | DC Resistance (loop) | Voltage Rating | Frequency Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80-110-600 BK | RG11 | PE | CCS | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 63.5 Ohms | 60 VDC | 3 GHz |
| 80-110-520 BK | RG11 | PVC | Cu | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 30.43 Ohms | 60 VDC | 3 GHz |
| 80-110-560 BK | RG11 | PVC | CCS | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 63.5 Ohms | 60 VDC | 3 GHz |
