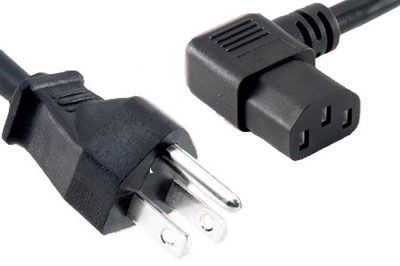

Universal CPU Power Cord - NEMA 5-15P to C13 Left Angle - 15 Amp
5-15 to C13 Left Angle Power Cable - 15FT CPU Power Cord
Our Universal Power Cords are a perfect replacement for your lost, damaged, or inadequate power cord. They are designed to work with most PCs, monitors, scanners, printers and other devices that use the 3-pin C13 connector. With a left angle connector this is the perfect space saving cable. This cable features a fully molded design that provides maximum durability and long-life.
Features
- Length - 15 Foot
- Connector 1 - IEC C13 Left Angle Inlet
- Connector 2 - NEMA 5-15P Straight Plug
- 15 Amp 125 Volt Rating
- SJT Jacket
- 14 AWG
- Certification: UL listed
Product Questions
Q: How do I know which angle I need?
A: Looking at the receptacle with the middle pin up a right angle cord will exit to the right and left angle will exit to the left.
 |  |  |
Power Receptacle | Right Angle Connector | Left Angle Connector |
Q: What is the difference between a SVT jacket and a SJT jacket?
A: SVT jackets are thinner and more flexible and only come in 17 or 18 AWG sizes. SJT cords have twice as much insulation making them less flexible. They can be produced in gauges sizes from 10 to 18 AWG.
Q: I'm not sure which power cable I need. Can you help?
A: The different power connectors can be confusing. We have a chart on the resources tab to help you determine which connector you need.
IEC connectors are the standard connectors as recognized by the International Electrotechical Commission. They are non-locking connectors rated up to 250 volts. The IEC standard uses a numerical approach to distinguish which is the outlet and which is the inlet. All odd numbers (C5 C13 etc.) are the outlets which plug into the even number inlet. The odd number connectors mate with the even number directly after them. For example a C13 plugs into a C14 but will not plug into a C12.
| Outlet | Inlet | Picture | Grounded | Max Amperage | Notes |
|---|---|---|---|---|---|
| C5 | C6 |  |
Yes | 2.5 | Laptops, Apple, iMac sometimes referred to as "Mickey Mouse" connector |
| C7 | C8 |  |
No | 2.5 | Non-Polarized version. Very common plug found on audio video equipment laptop power supplies. |
| C7 | C8 |  |
No | 2.5 | Polarized version. Very common plug found on audio video equipment laptop power supplies |
| C13 | C14 |  |
Yes | 10 or 15 | Very common found on most computers and peripherals |
| C15 | C16 |  |
Yes | 10 or 15 | Used for small appliances that get very hot. |
| C19 | C20 |  |
Yes | 16 or 20 | 2005 PowerMac Cisco, Power Supplies Ciscoo, Chassis Dell workstations. |
| Receptacle | Plug | Picture | Grounded | Max Amperages | Notes |
|---|---|---|---|---|---|
| 1-15R | 1-15P |  |
No | 15 | Typical two prong connector found on lamps, radio clocks, and other small electronics |
| 5-15R | 5-15P |  |
Yes | 15 | Typical three prong connector found in modern homes. It is also found on countless electronic devices. |
| L5-15R | L5-15P |  |
Yes | 15 | Locking version of the 5-15 |
| 5-20R | 5-20P |  |
Yes | 20 | 20 amp connector. 5-20 recepticles will accept a 5-15 plug. |
| L5-20R | L5-20P |  |
Yes | 20 | Locking version of the 5-20 |
|
240VAC Power Connectors |
|||||
| 6-15R | 6-20P |  |
Yes | 15 | Wired hot - hot - ground. |
| 6-20R | 6-20P |  |
Yes | 20 | Wired hot - hot - ground. |
