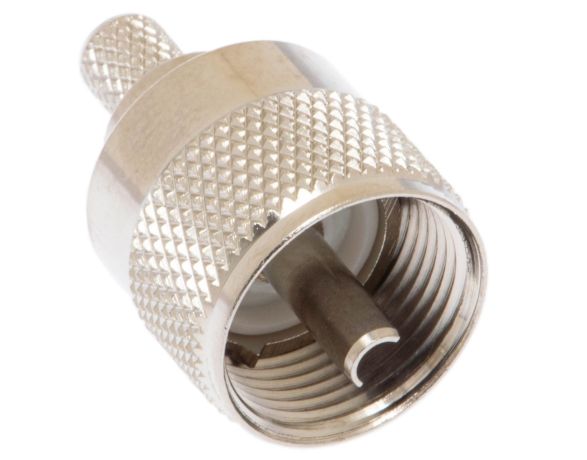

UHF Male Crimp Connector - RG8/X & LMR-240
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-19 | 20-99 | 100-499 | 500+ |
| $4.36 | $3.66 | $3.14 | $2.78 | $2.43 |
A male UHF connector (also called PL-259) is a threaded RF connector commonly used in RF applications. The threaded design makes a UHF connector a secure and reliable connection. UHF connectors come in male and female variations.
Features:
- Fits RG8/X & LMR-240
- Male
- Crimp style
- 2 piece design (connector and ferrule)
- Nickel-plated brass
Building Cables?
Let ShowMeCables do it for you. Our custom cables are professionally built, have quick turn-arounds and there is no minimum order requirement. Design your cable online, or contact our sales department for a quote.
Q: What are other terms used for UHF connectors?
A: UHF connectors are also commonly referrred to as amphenol or PL-259 and SO-259 connectors.
- PL-259 is a male UHF connector
- SO-259 is a female UHF connector
Q: What is a UHF connector commonly used for?
A: UHF connectors were formally used in Radar applications but are used more in today's RF applications.
| Features & Specs | ||
|---|---|---|
| Cable Type | The type of cable this connector fits? | RG8/X & LMR-240 |
| Form factor | The form factor of this connector? | Straight |
| Style | The style of this connector? | Crimp |
| Impedance | The impedance of this connector? | 50 Ohm |
| Gender | The gender of this connector? | Male |
| Material | The material this connector is made from? | Brass with nickel plating |
