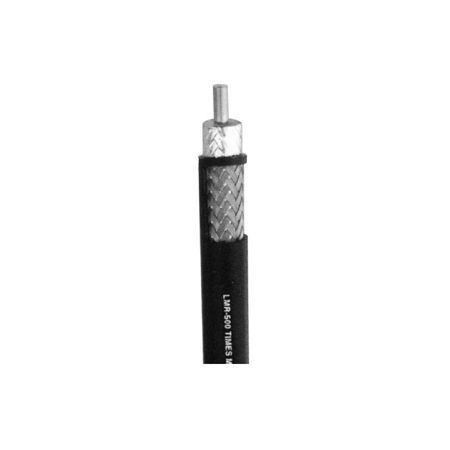

Times Microwave LMR-500 Coax Cable
The Times Microwave LMR-500 cable is a watertight superflexible because of its stranded outer conductor. This 50 Ohm coax cable has a copper-clad aluminum center conductor. The low loss coaxial cable transmission line has a UV-resistant Polyethylene jacket for outdoor use. The Times Microwave LMR-500 coax cable is available in bulk and is priced per foot.
Features:
- Manufacturer Times Microwave Systems
- Center Conductor Construction Solid
- Qty/ Uom 1 Foot
- VOP 86 %
- OD: .500
- Center Conductor Material Copper Clad Aluminum
- Dielectric Insulation PE
- Cable Type LMR-500
- Strip Tool 98057
- Center Conductor Diameter .142 in
LMR® is a Registered Trademark of Times Microwave Systems.
Please note: All products that are bought per foot are non-returnable.
Write Your Own Review
Product Questions
Cable | Jacket | Inner Conductor Material | Inner Conductor Diameter (mm) | Dielectric | Outer Conductor (Shield) | Overall Braid | Bend Radius (mm) | Velocity of Propagation (%) | Dielectric Constant | Impedance | Capacitance | DC Resistance (loop) | Voltage Rating | Frequency Range |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
80-600-190 BK | PVC | CCS | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 149 Ohms | 60 VDC | 3 GHz |
80-110-520 BK | PVC | Cu | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 30.43 Ohms | 60 VDC | 3 GHz |
80-110-560 BK | PVC | CCS | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 63.5 Ohms | 60 VDC | 3 GHz |
80-110-600 BK | PE | CCS | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 63.5 Ohms | 60 VDC | 3 GHz |
80-111-195 BK | PE | Cu | 0.94 | Foam PE | AL foil | TC wire | 127 mm | 75% | 1.78 | 50 Ohms | 80 pF/m | 41.6 Ohms | 3 GHz | |
80-150-240 BK | PE | Cu | 1.42 | Foam PE | AL foil | TC wire | 127 mm | 83% | 1.45 | 50 Ohms | 80 pF/m | 23.9 Ohms | 3 GHz | |
80-150-400 BK | PE | CCA | 2.74 | Foam PE | AL foil | TC wire | 210 mm | 85% | 1.4 | 50 Ohms | 78 pF/m | 10.3 Ohms | 3 GHz | |
80-580-100 BK | PVC | Cu | .9 | Solid PE | Cu wire | 50 mm | 66% | 2.3 | 50 Ohms | 31.2 pF/m | 46.2 Ohms | 24 VDC | 1 GHz | |
80-590-130 BK | PVC | Cu | .81 | Foam PE | Cu wire | 60 mm | 83% | 1.5 | 75+/-3 Ohms | 53.2 pF/m | 49 Ohms | 24 VDC | 1 GHz | |
80-590-185 BK | PVC | Cu | .81 | Foam PE | Cu wire | 60 mm | 83% | 1.5 | 75+/-3 Ohms | 53.2 pF/m | 49 Ohms | 24 VDC | 1 GHz | |
80-600-190 WH | PVC | CCS | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 149 Ohms | 60 VDC | 3 GHz |
80-600-220 BK | PVC | CCS | 1.02 | Foam PE | AL foil | AL wire | 75 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 126.3 Ohms | 60 VDC | 3 GHz |
80-600-250 BK | PVC | Cu | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 62.5 Ohms | 60 VDC | 3 GHz |
80-600-250 WH | PVC | Cu | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 62.5 Ohms | 60 VDC | 3 GHz |
80-600-280 BK | PVC | CCS | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 149 Ohms | 60 VDC | 3 GHz |
