Steel Beam Clamp - 3/4 Inch - 1/4-20 Thread
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-49 | 50-99 | 100-199 | 200-299 | 300+ |
| $1.68 $1.68 | $1.67 | $1.63 | $1.63 | $1.57 |
Quantity Available: 12073

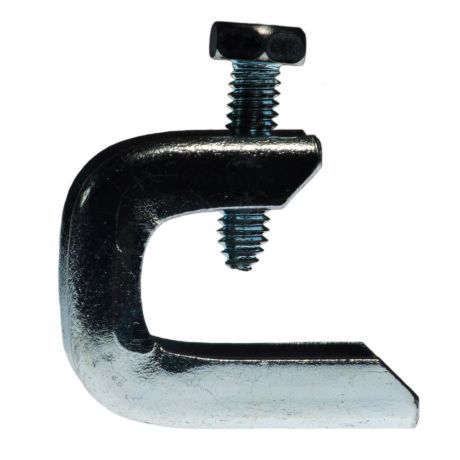

Steel I-Beam Clamp - 3/4 Inch - 1/4-20 Thread
This Steel Beam Clamp is used to hang bridle rings and different hangers from structural beams. It has a 3/4 inch jaw opening and 1/4-20 thread holes. This beam clamp is designed to hang medium duty loads and it will not slip or become distorted once tightened onto the beam.
Features:
- 3/4 Inch Jaw Opening
- 1/4 Flange Thickness
- Load Rating: 100 Lbs.
- 1/4-20 Threading
- UL Listed
Q: How much distance should I put between each of my cable supports?
A: You don’t want to put too much weight on any type of cable support. It is a good idea to put a cable support such as a J-Hook or Bridle Ring every 4 to 5 feet. This ensures that your cables will not stretch or fall under too much weight.
Q: What kind of support do I need for data cabling?
A: When you are dealing with sensitive high performance data cables such as fiber optic cables you need to use either J-Hooks or Bridle Rings with saddles. For all other cable types you can use any type of cable support such as standard Bridle Rings.
