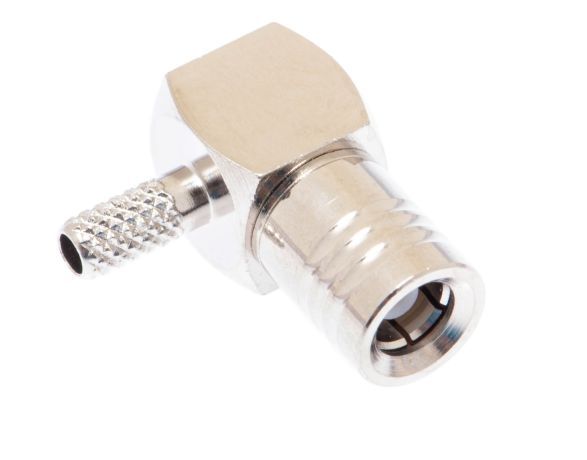

An SMB connector is a coaxial RF connector with a snap-on connection. SMB connectors are smaller than SMA connectors and are primarily used in telecommunications and automotive applications.

Features:

Fits RG74 & LMR-100
Male
Right angle
Crimp style
50 ohm
Nickel plated brass

Building Cables?

Let ShowMeCables do it for you. Our custom cables are professionally built, have quick turn-arounds and there is no minimum order requirement. Design your cable online, or contact our sales department for a quote.

Reviews 1

Q&A

Frequent Q&A

Q: What is an SMB connector?

A: Subminiature B or SMB connectors are a threaded RF connector.

Q: What is an SMB connector commonly used for?

A: An SMB connector is commonly used in GPS wireless LAN telecommunication and testing instruments.

Q: What is the difference between SMA and SMB connectors?

A: SMB connectors are smaller than SMA connectors.

Specification

Features & Specs
Cable Type	The type of cable this connector fits?	RG174 & LMR-100
Form factor	The form factor of this connector?	Right angle
Style	The style of this connector?	Crimp
Impedance	The impedance of this connector?	50 Ohm
Gender	The gender of this connector?	Male
Material	The material this connector is made from?	Brass with nickel plating
