SMA Male to TNC Female Adapter
Quantity Discount Pricing | ||||
---|---|---|---|---|
1-4 | 5-9 | 10-49 | 50-99 | 100+ |
$18.99 | $15.39 | $13.79 | $12.19 | $10.59 |
Quantity Available: 1092

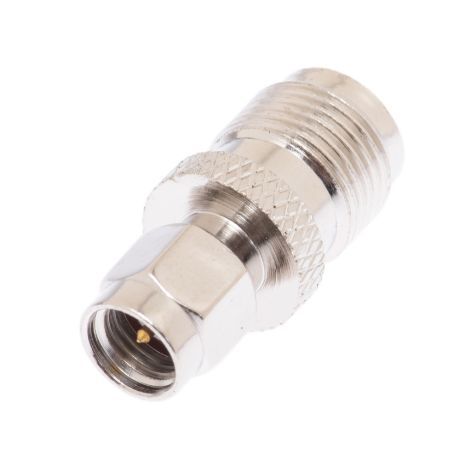

Coax adapters are the perfect way to quickly change the gender or connector type on an already-terminated cable. This nickel-plated coaxial adapter has an SMA male connector opposite an TNC female connector.
Features:
- Connector A: SMA Male
- Connector B: TNC Female
- Straight
- Brass body
- Nickel-plated
Q: What is an SMA connector?
A: Subminiature A or SMA connectors are a threaded RF connector.
Q: What is an SMA connector commonly used for?
A: An SMA connector is commonly used in GPS wireless LAN telecommunication and testing instruments.
Q: What is a TNC connector?
A: A TNC connector is a threaded RF connector. Very similar to a BNC but threaded.
Q: What is an TNC connector commonly used for?
A: TNC connectors are commonly used in radio communications and wifi networks.
Q: How can I tell the difference between standard and reverse polarity connectors?
- A standard male will be internally threaded with a male pin.
- A standard female will be externally threaded and accept a pin.
- A reverse polarity male will be internally threaded and accept a pin.
- A reverse polarity female will be externally threaded with a male pin.
Features & Specs | ||
---|---|---|
Adapter Type | The type of adapter? | SMA to TNC |
Form factor | The form factor of this connector? | Straight |
Gender | The gender of this connector? | Male to Female |
Material | The material this connector is made from? | Brass with nickel plating |
