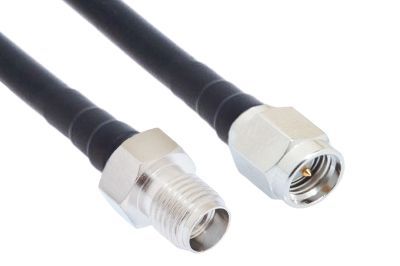

SMA Male to SMA Female Low Loss 400 UltraFlex Coaxial Assembly - 15 FT

SKU
28-474-015

15 FT | 50 Ohm Wi-Fi Cable | Stranded Bare Copper | Thermoplastic Elastometer Jacket | LMR-400 Equivalent

Quantity Discount Pricing
1-2 3-9 10-24 25-49 50+
$53.86 $51.94 $51.03 $49.03 $46.31

Low Loss 400 UltraFlex Cable - 15FT SMA Male to SMA Female

Designed to deliver high performance with minimal loss, Low Loss 400 UltraFlex  (LMR-400UF equivalent) assemblies are the standard for the wireless LAN industry.  With a durable Polyethylene jacket, these cables are suited for indoor and outdoor installations.

Features:

  • Length: 15 FT
  • Connector 1: SMA Male
  • Connector 2: SMA Female
  • Cable Type: ShowMeCable Low Loss 400 UltraFlex (LMR-400UF Equivalent)
  • 50 Ohm
  • Polyethylene (PE) Jacket suitable for Indoor or Outdoor Use
  • Stranded Center Conductor for maximum flexibility
  • Applications: Wi-Fi, Antenna Cables, Ham Radio, Patch Cables, Jumper Cables, WLL, GPS, WLAN, LMR, WISP, WiMax, SCADA, Mobile Antennas
                            Write Your Own Review
                            You're reviewing:SMA Male to SMA Female Low Loss 400 UltraFlex Coaxial Assembly - 15 FT
                            Your Rating

                            Q: What is a Reverse Polarity Connector?


                            A: A Reverse Polarity Connector alters a standard connector by utilizing a male pin center conductor in a female housing or a female pin in a male housing. This prevents mating with a standard non-polarized connector.


                            Q: What is the difference between Low Loss 400 and LMR 400?


                            A: The only difference between Low Loss 400 and LMR400 is the manufacturer.  Both cables are made out of the same materials and have the same loss characteristics.


                            Q: What is the difference between Low Loss 400 and Low Loss 400 UltraFlex?


                            A: Low Loss 400 and Low Loss 400 UltraFlex have two main differences.  The first difference is the jacket.  Low Loss 400 uses a Polyethylene (PE) jacket. Low Loss 400 UltraFlex uses a more flexible Thermoplastic Elastomer (TPE). Both cables are rated for indoor and outdoor applications. The second difference is the center conductor.  Low Loss 400 uses a solid bare copper covered aluminum (BCCAI) center conductor. The Low Loss 400 UltraFlex uses a more flexible stranded bare cooper (BC) center conductor. Both cables have similar loss characteristics.





















































                            Wi-Fi Cable Connector Resource


                            Connector Type


                            Front View


                            Profile View


                            Reverse Polarity SMA


                            3.5mm TS Plug


                            3.5mm TS Plug


                            Standard SMA


                            3.5mm TS Plug


                            3.5mm TS Plug


                            Reverse Polarity TNC


                            3.5mm TS Plug


                            3.5mm TS Plug


                            Standard TNC


                            3.5mm TS Plug


                            3.5mm TS Plug


                            Standard BNC


                            3.5mm TS Plug


                            3.5mm TS Plug


                            Standard FME


                            3.5mm TS Plug


                            3.5mm TS Plug


                            Standard N Series


                            3.5mm TS Plug


                            3.5mm TS Plug


                            Standard UHF


                            3.5mm TS Plug


                            3.5mm TS Plug
