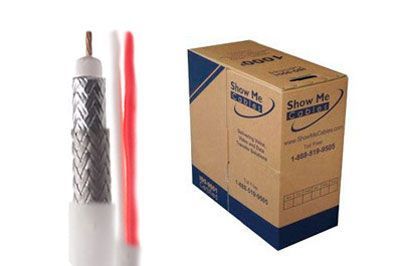

RG59 95% Shield Plenum Coax Cable with 18/2 Power - BC - White

80-590-165 XX
75 Ohm | 20 AWG | Shielded | PVC | CMP Rated | Bare Copper Conductor | UL & ETL Listed

Plenum rated RG59 is designed to meet the strictest of electrical codes; our plenum cable meets or exceeds many common cable standards. The CCTV RG59 with 18/2 Power wire Coaxial Cable has a siamese PVC jacket, making it suitable for closed circuit television applications.  This cable features a UL listed CMP PVC jacket. Internally this cable is protected from RFI and EMI interference by a 95% copper braid shield. The center conductor is made from 20 AWG solid copper. The power wire is made from 1 pair 18 AWG stranded pure copper. This bulk cable comes in high quality wooden spool and can be measured and cut to exact distances. RG59 is commonly terminated with an F-Type, BNC, or RCA connector. Save time and money by running the video and power cable at the same time.


  • 75 Ohm
  • 20 AWG Bare Copper Conductor
  • 95% Copper Braid Shield
  • 18/2 Copper Power Wire
  • PVC Jacket
  • Plenum
  • CM/CLP Rated
  • UL/ETL Listed
  • Professional Grade
  • Foot Markings
  • RoHS Complaint
    Write Your Own Review
    You're reviewing:RG59 95% Shield Plenum Coax Cable with 18/2 Power - BC - White
    Your Rating

    Product Questions

    No questions yet. Be the first to ask the question!
    Features & Specs
    Cable TypeThe type of cable described?RG59 95% Shield Plenum w/Power
    ImpedanceImpedance of cable?75 ohms
    Center ConductorThe type of material used in the center conductor of the cable??Bare Copper (BC)
    Center Conductor DiameterDiameter of center conductor in inches?.025'
    DielectricMaterial used as dielectric in the cable??Foam PE (Polyethylene)
    Jacket MaterialThe type of material used in the jacket of the cable?Low Smoke Polyvinyl chloride (PVC)
    Cable DiameterDiameter in inches of cable?.24'
