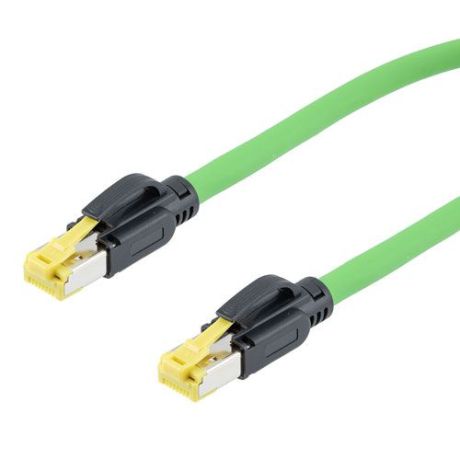

Profinet Type B/C Cat6a 4-Pair RJ45-RJ45 SF/UTP Double Shielded 26AWG Stranded Drag Chain High Flex Industrial Outdoor HFPUR Green 0.5m
The PC601-05M from ShowMeCables is a 0.5-meter long 4-pair Category 6a-rated cable assembly that is available in green color. This Profinet cable has SF/UTP double-shielded construction that provides maximum protection from data-destroying EMI and RFI interference. Our 10 gigabit Ethernet cable is built with 26AWG stranded high-flex, drag chain rated conductors for type B or C Profinet applications.
ShowMeCables 4-pair Profinet cable has a high-retention RJ45 connector boot on both ends that takes 50N pulling pressure to disengage from the plug. With a drag chain rating of 10,000,000 bending cycles and a torsion rating of 3,000,000 bending cycles, this cable assembly eliminates the need for frequent cable replacement. Our Cat6a cable features an IEC 60332-1-2, UL AWM 20549, and an outdoor and industrial rated HFPUR (halogen-free polyurethane) jacket that is oil, ultra-violet (UV), and moisture resistant.
Our PC601-05M Category 6a cable is suitable for outdoor or industrial networks, PoE use, harsh environments such as oil and gas, transportation, and high-flex and continuous motion applications. This double-shielded cable assembly can operate at temperatures ranging from -40 to 80 deg C. Additional dimensions and specifications for this Ethernet cable are on our downloadable PDF datasheet above.
ShowMeCables offers one of the largest in-stock selections of 4-pair Cat6a cable assemblies for international and domestic orders. Place your online order now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the ideal Profinet cable for your requirements.
Features:
4-pair Profinet cable assembly with 26AWG stranded high flex, drag chain rated conductors for Type B or C Profinet applications with Category 6a, 10gigabit Ethernet compliance
Halogen Free HFPUR jacket is Outdoor & Industrial rated with Oil, UV, Moisture resistances and is IEC 60332-1-2 and UL AWM 20549 rated
SF/UTP double shielded construction to reduce or eliminate EMI/RFI
Drag chain rated for 10,000,000 bending cycles and torsion rated for 3,000,000 bending cycles
High retention RJ45 boot takes 50N to disengage from the plug
