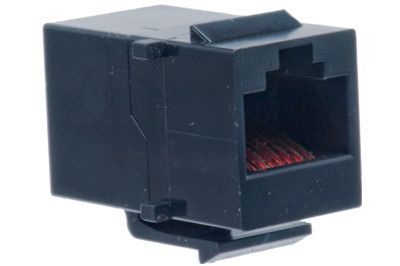

RJ45 Keystone Coupler - Black
SKU
525
8P8C | Economical Coupler | Straight Pinout | Gold-Plated Contacts | Connect Two Patch Cables
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-24 | 25-49 | 50-99 | 100-249 | 250+ |
| $2.99 | $2.85 | $2.69 | $2.53 | $2.37 |
This economical RJ45 keystone coupler can be used to transmit voice or data signals. A standard keystone-sized jack, it will fit into any keystone wall plate, surface-mount box, or wall plate. RJ45 jacks on both sides allow patch cables to be plugged in directly, without the need to punchdown on the jack. This RJ45 coupler is an affordable solution for the budget conscious.
Features:
- Front Connector: RJ45
- Rear Connector: RJ45
- Color: Black
- Pinout: Straight
Write Your Own Review
Product Questions
What is the rating for the coupler (Cat5e, Cat6, etc.)?
Question by: Craig on Apr 18, 2020, 10:35 AM
Thank you for the question! This coupler is Cat5e rated.
Answer by: Blake Woods on Apr 20, 2020, 8:34 AM
| TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks | ||||
| IDC | T568A | T568B | ||
| Terminals | Pair | Wire Color | Pair | Wire Color |
| PIN5 | 1 | White/Blue | 1 | White/Blue |
| PIN4 | Blue | Blue | ||
| PIN1 | 3 | White/Green | 2 | White/Orange |
| PIN2 | Green | Orange | ||
| PIN3 | 2 | White/Orange | 3 | White/Green |
| PIN6 | Orange | Green | ||
| PIN7 | 4 | White/Brown | 4 | White/Brown |
| PIN8 | Brown | Brown | ||
