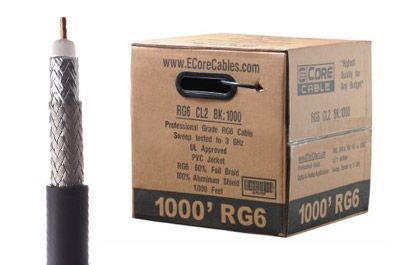

RG6 is commonly used for digital HDTV, CATV, satellite television, and outdoor TV antennas installations. This cable features a UL listed PVC jacket. Internally this cable is protected from RFI and EMI interference by a 60% aluminum braid and 100% aluminum foil shield. The center conductor is sweep tested to 3.0 GHz and is made from 18 AWG solid copper-clad steel. This bulk cable comes in a high-quality, easy pull box and can be measured and cut to exact distances. RG6 is commonly terminated with an F-Type, BNC, or RCA connector.

Features:

75 Ohm
18 AWG Copper-clad Steel Center Conductor
60% Braid/100% Foil Shield
PVC Jacket
CM Rated
UL Listed
Sweep-Tested to 3 GHz.
Professional Grade
Digital and Analog Applications
U/V Inhibitor
Foot Markings
1000 Feet

Reviews 6

Resources

Cable	Cable Type	Jacket	Inner Conductor Material	Inner Conductor Diameter (mm)	Dielectric	Outer Conductor (Shield)	Overall Braid	Bend Radius (mm)	Velocity of Propagation (%)	Dielectric Constant	Impedance	Capacitance	DC Resistance (loop)	Voltage Rating	Frequency Range
80-600-190 BK/WH	RG6	PVC	CCS	1.02	Foam PE	AL foil	AL wire	70 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	149 Ohms	60 VDC	3 GHz
80-600-220 BK	RG6	PVC	CCS	1.02	Foam PE	AL foil	AL wire	75 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	126.3 Ohms	60 VDC	3 GHz
80-600-250 BK	RG6	PVC	Cu	1.02	Foam PE	AL foil	AL wire	70 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	62.5 Ohms	60 VDC	3 GHz
80-600-250 WH	RG6	PVC	Cu	1.02	Foam PE	AL foil	AL wire	70 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	62.5 Ohms	60 VDC	3 GHz
80-600-280 BK	RG6	PVC	CCS	1.02	Foam PE	AL foil	AL wire	70 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	149 Ohms	60 VDC	3 GHz

Specification

Click Here to Download the Spec Sheet
