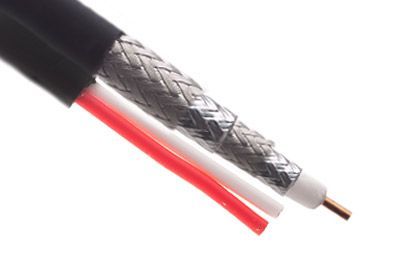

The CCTV RG6 with 18/2 Power wire Coaxial Cable has a siamese PVC jacket, making it suitable for closed circuit television applications. This cable features a CL2/CM rated PVC jacket. Internally this cable is protected from RFI and EMI interference by a 95% bare copper braided shield. The center conductor is sweep tested to 3.0 GHz and is made from 18 AWG solid copper-clad steel. The power wire is made from 1 pair 18 AWG stranded pure copper. This bulk cable is sold by the foot—order just what you need. RG6 is commonly terminated with an F-Type, BNC, or RCA connector.

Features:

75 Ohm
18 AWG Solid Copper Conductor
95% Braid
CM/CL2 Rated
UL Listed
PVC Jacket
Sweep-Tested to 3 GHz.
Professional Grade
Digital and Analog Applications
RoHS Compliant
Foot Markings

Reviews

Q&A

Specification

Features & Specs
Cable Type	The type of cable described?	RG6 95% Copper Shield w/Power
Impedance	Impedance of cable?	75 ohms
Center Conductor	The type of material used in the center conductor of the cable??	Bare Copper (BC)
Center Conductor Diameter	Diameter of center conductor in inches?	.0403'
Dielectric	Material used as dielectric in the cable??	Foam PE (Polyethylene)
Jacket Material	The type of material used in the jacket of the cable?	Polyvinyl chloride (PVC)
Cable Diameter	Diameter in inches of cable?	.266'
