RG59 95% Shield Coax Cable with 18/2 Power - BC

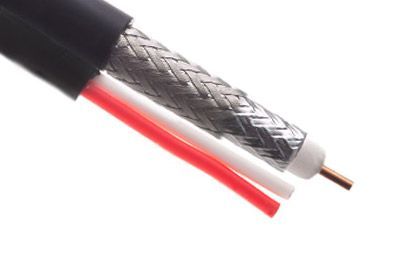

The CCTV RG59 with 18/2 Power wire Coaxial Cable has a siamese PVC jacket, making it suitable for closed circuit television applications. This cable features a CM rated PVC jacket. Internally this cable is protected from RFI and EMI interference by a 95% bare copper braided shield. The center conductor is made from 20 AWG solid copper. The power wire is made from 1 pair 18 AWG stranded pure copper. This bulk cable is sold by the foot, order just what you need. RG59 is commonly terminated with an F-Type, BNC, or RCA connector. Save time and money by running the video and power cable at the same time.
- 75 Ohm
- 20 AWG Bare Copper Conductor
- 95% Copper Braid Shield
- 18/2 Copper Power Wire
- PVC Jacket
- CM Rated
- UL/ETL Listed
- Professional Grade
- Foot Markings
- Sold by the Foot
- Max Continuous Length: 1000 FT
Please note: All products that are bought per foot are non-returnable.
Any amount of cable you order above the maximum continuous length of 1000 FT will be sent in separate pieces.
|Features & Specs|
|Cable Type||The type of cable described?||RG59 95% Shield w/Power|
|Impedance||Impedance of cable?||75 ohms|
|Center Conductor||The type of material used in the center conductor of the cable??||Bare Copper (BC)|
|Center Conductor Diameter||Diameter of center conductor in inches?||.025'|
|Dielectric||Material used as dielectric in the cable??||Foam PE (Polyethylene)|
|Jacket Material||The type of material used in the jacket of the cable?||Polyvinyl chloride (PVC)|
|Cable Diameter||Diameter in inches of cable?||.24'|
