ShowMeCables RG11 Solid Copper Coax Cable - Black
SKU
80-110-520 XX
75 Ohm | 14 AWG | Shielded | PVC | CM Rated | Solid Copper Conductor | UL Listed

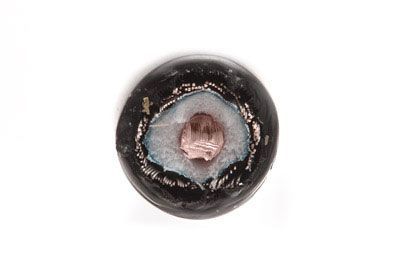

The RG11 PVC coaxial cable is typically used for cable or satellite service. RG11 has an imdedance of 75 ohms and is used for the longer runs or backboning premise wiring. This RG11 PVC cable features a solid 14 AWG copper center conductor with a 60% aluminum braid and 100% aluminum foil shield.
Features:
- RG11
- PVC Jacket
- Impedance - 75 ohm
- Solid Copper center conductor
- Rated for indoor use
- UL-Listed
Please note: All products that are bought per foot are non-returnable.
Any amount of cable you order above the maximum continuous length of 1000 FT will be sent in separate pieces.
Write Your Own Review
Product Questions
What is the minimum bend radius of the ECore RG11 Solid Copper Coax Cable? Thank you.
Question by: Tim Lemons on Mar 28, 2018, 8:08 PM
This cable has a 120mm bend radius
Answer by: Andrew - Product Management on Mar 30, 2018, 12:59 PM
| Cable | Cable Type | Jacket | Inner Conductor Material | Inner Conductor Diameter (mm) | Dielectric | Outer Conductor (Shield) | Overall Braid | Bend Radius (mm) | Velocity of Propagation (%) | Dielectric Constant | Impedance | Capacitance | DC Resistance (loop) | Voltage Rating | Frequency Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80-110-520 BK | RG11 | PVC | Cu | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 30.43 Ohms | 60 VDC | 3 GHz |
| 80-110-560 BK | RG11 | PVC | CCS | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 63.5 Ohms | 60 VDC | 3 GHz |
| 80-110-600 BK | RG11 | PE | CCS | 1.63 | Foam PE | AL foil | AL wire | 120 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 63.5 Ohms | 60 VDC | 3 GHz |
