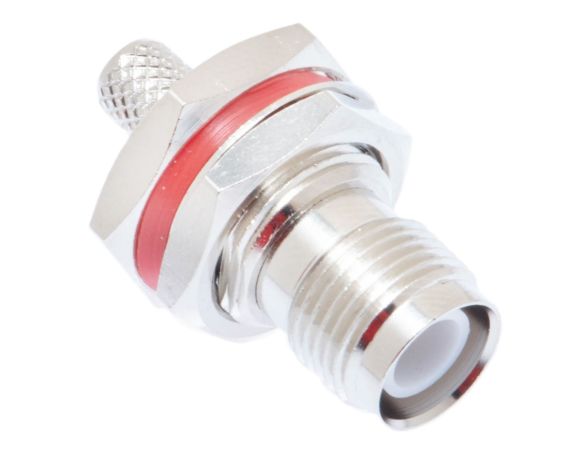

A TNC connector is a threaded RF connector commonly used in radio communications. The threaded and weatherproof design makes a TNC connector a secure connection. TNC connectors come in male and female variations as well as reverse polarity.

Features:

LMR-240
Reverse Polarity Female
Bulkhead
Crimp style
50 ohm
3 piece design (connector, pin and ferrule)
Nickel plated brass

Building Cables?

Let ShowMeCables do it for you. Our custom cables are professionally built, have quick turn-arounds and there is no minimum order requirement. Design your cable online, or contact our sales department for a quote.

Reviews

Frequent Q&A

Q: What is a TNC connector?

A: A TNC connector is a threaded RF connector. Very similiar to a BNC but threaded.

Q: What is an TNC connector commonly used for?

A: TNC connectors are commonly used in radio communications and wifi networks.

Q: How can I tell the difference between standard and reverse polarity connectors?

A standard male will be internally threaded with a male pin.

A standard female will be externally threaded and accept a pin.

A reverse polarity male will be internally threaded and accept a pin.

A reverse polarity female will be externally threaded with a male pin.

Specification

Features & Specs
Cable Type	The type of cable this connector fits?	LMR-240
Form factor	The form factor of this connector?	Bulkhead
Style	The style of this connector?	Crimp
Impedance	The impedance of this connector?	50 Ohm
Gender	The gender of this connector?	Reverse Polarity Female
Material	The material this connector is made from?	Brass with nickel plating

Click Here to Download the Spec Sheet
