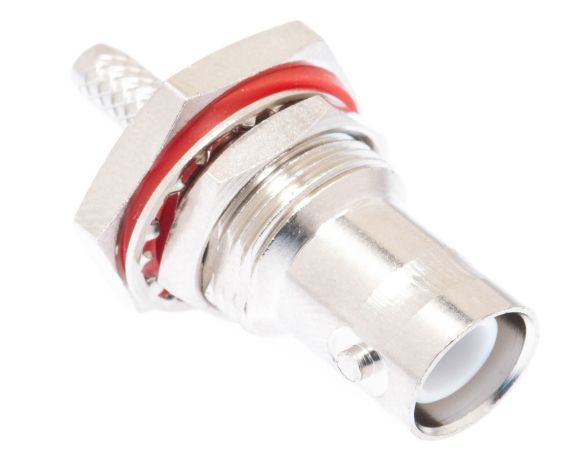

Reverse Polarity BNC Female Bulkhead Crimp Connector - RG174

SKU
2735
2 Piece | RP Female | Nickel Plated | Crimp Type | Bulkhead
Quantity Discount Pricing
1-4 5-19 20-99 100-499 500+
$3.26 $2.90 $2.83 $2.76 $2.70

This 50 ohm BNC crimp connector is a locking RF connector that is used on many types of coaxial cable. BNC connectors are commonly used on test equipment, avionics, analog and serial digital interfaces as well as video signals. BNC crimp connectors require a crimp tool for termination.

Features:

  • Fits RG174
  • Female
  • 50 ohm
  • Crimp style
  • 2 piece design (connector and ferrule)
  • Nickel plated connector, gold plated pin

Building Cables?

Let Triangle Cables do it for you. Our custom cables are professionally built, have quick turn-arounds and there is no minimum order requirement. Design your cable online, or contact our sales department for a quote.

Write Your Own Review
You're reviewing:Reverse Polarity BNC Female Bulkhead Crimp Connector - RG174
Your Rating

Q: What is a BNC Connector?

A: BNC connectors are miniature quick connect/disconnect radio frequency (RF) connectors used for coaxial cable that work with video and ethernet applications.

Q. What do I need for proper installation?

A. A coax stripper, coax cable, a crimp tool, soldering iron, and the BNC connector are all needed for proper installation.

Q: What does it mean when a connector says it is 50 ohm or 75 ohm?

A: BNC connectors are most commonly made in 50 and 75 ohm versions. Video and DS3 Telco central office applications primarily use 75 ohm connectors, while 50 ohm connectors are used for data.

You can easily tell the difference between the two by looking for the dialectric. The 50 ohm connector features a white dialectric surrounding the center pin, while the 75 ohm BNC connector is surrounded by air (no dialectric).

50 ohm and 75 ohm BNC connectors will mate with each other. At frequencies under 10 MHz the impedance mismatch will not have any affect. If you are above 10 MHz the chances of signal distortion become more significant.

Q. What is a bulkhead connector?

A. A bulkhead connector is a term used to define a mounting style of connectors. These connectors are designed to be inserted into a patch panel cutout from the rear or the front side of the patch panel.

Q. What is reverse polarity?

A. Reverse polarity is a variation of the BNC specification which reverses the polarity of the interface. If a BNC connector has a hollow pin, but channel locks, this would be a BNC reverse polarity male connector. If a connector has a locking bolts, but a solid pin, the connector would be a BNC reverse polarity female connector.

Features & Specs
Cable TypeThe type of cable this connector fits?RG174 LMR-100
Form factorThe form factor of this connector?Bulkhead
StyleThe style of this connector?Crimp
ImpedanceThe impedance of this connector?50 Ohm
GenderThe gender of this connector?Reverse Polarity Female
MaterialThe material this connector is made from?Brass with nickel plating
