Professional Series RG6 F-Type Coax Cable

SKU
25-122-xxx
18 AWG | 3 GHz Rated | 75Ω | Dual Shield | Environmentally Sealed Connectors

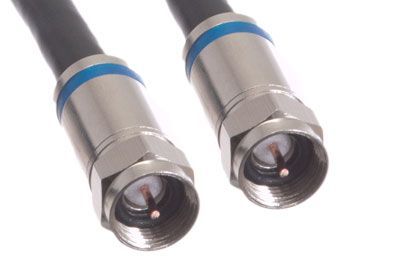

F Type Coax Cable - 3FT RG6 Professional Satellite Cable

Professional Series RG6 F Type coax cables are commonly used for cable, satellite, and TV antenna signals. All metal Lock and Seal F-type connectors provide a secure connection that won't deteriorate over time. Lock and Seal connectors also have a rubber O-ring to prevent water from seeping into the connector. Internally, the foil and braided shield protect the cable from EMI/RFI interference that can cause a distorted picture. The flexible PVC jacket enables easy installation. Professional Series F-Type cables provide maximum video quality at a bargain price.

Features:

  • Length: 3 Foot
  • Connectors: All Metal Lock and Seal F-Type Male
  • 18 AWG Center Conductor
  • 75 Ohm
  • 3 GHz Rated
  • Dual Shielding (Foil and Braid)
  • UL Listed
Write Your Own Review
You're reviewing:Professional Series RG6 F-Type Coax Cable
Your Rating

Q: What does “RG IN mean?


A: The 'RG' is short for 'Radio Guide ' a term that dates back to the World War II era when the military made heavy use of coaxial cable and developed a set of standards to specify different grades of coax and their applications. Even though we still refer to coaxial cables by their original RG numbers today these standards are now obsolete in regard to actual military use.


Q: What is the difference between RG59 RG6 and RG11?


A: Each of these coaxial cables has a characteristic impedance of 75 ohms. RG59 cable has a smaller diameter center conductor than RG6 resulting in higher signal loss. RG59 cables are typically specified for use as equipment patch cords because of their smaller bend radius and enhanced flexibility. Since RG6 cables exhibit less attenuation than RG59 they are more commonly used for distributed cabling and are recommended for use up to 295 ft. RG11 cables support even less signal loss than RG6 or RG59 because the center conductor diameter is almost twice that of RG59. RG11 cables are recommended for lengths up to 400ft.

Features & Specs
Cable TypeThetype of cable described?RG6 Outdoor
Conductor MaterialThetype of material used in the conductor of thecable??Copper Clad Steel
Conductor SizeGauge ofcenter conductor?18 AWG
ImpedanceImpedanceof cable?75 ohms
ShieldingType ofShielding used in this cable??Aluminum foil with 60% AluminumBraid
Bandwidth RatingBandwidththat the cable will support ?3 GHz
Jacket MaterialThetype of material used in the jacket of the cable?PVC
Cable DiameterDiameterin inches of cable?.27 inches
Cable RatingNECrating this cable has?CMR - UL Listed
Attenuation 1000 MHz/100 ftTheamount of loss at 2.4 GHz at 100 feet?7.7dB/100ft
