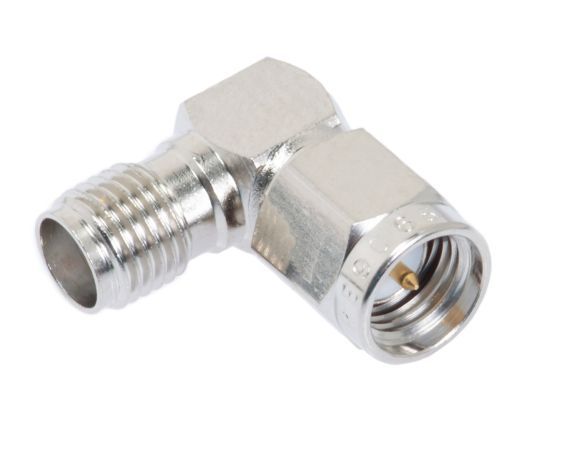

Pasternack PE9068 - SMA Male to SMA Female Right Angle Adapter
| Quantity Discount Pricing | |||
|---|---|---|---|
| 1-24 | 25-49 | 50-99 | 100+ |
| $45.39 | $43.39 | $40.99 | $39.19 |
Quantity Available: 50
The Premium Pasternack PE9068 SMA Male to SMA Female Right Angle Adapter is a high-grade solution for adapting existing connections on your cables and equipment. With a maximum frequency of 12.4GHz, this 50 Ohm adapter provides unsurpassed quality and reliability for your mission-critical systems.
Features
- Connector A: SMA Male (MIL-STD-348A)
- Connector B: SMA Female Right Angle (MIL-STD-348A)
- 50 Ohm
- 12.4GHz Max Frequency
- 1.23:1 Max VSWR
- 500 Vrms
- Gold Plated Beryllium Copper Pin
- Nickle Plated Brass Outer Conductor
- Nickle Plated Brass Body
- Temperature Range: -65C to 165C (-85F to 329F)
- RoHS and REACH Certified
- Pasternack PE9068
