PE5019-21 - Fixed Break-Over Torque Wrench With 27mm Bit For 7/16 DIN Connectors Pre-set to 20 in-lbs
| Quantity Discount Pricing | |||
|---|---|---|---|
| 1-24 | 25-49 | 50-99 | 100+ |
| $375.99 | $341.99 | $325.99 | $311.99 |
Quantity Available: 0

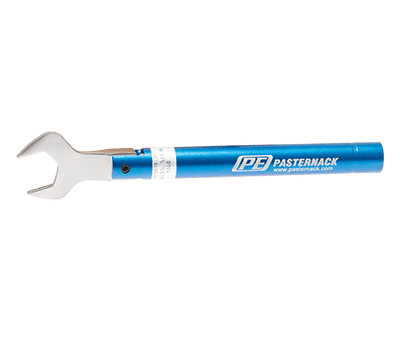

Pasternack PE5019-21 Fixed Break-Over Torque Wrench
The Premium Pasternack PE5019-21 is a fixed break over torque wrench for RF applications. It includes a 27mm bit for 7/16 DIN connectors and has a pre-set torque of 20 inch pounds.This prevents over-tightening of connectors and ensures that your connectors match the manufacturer’s recommendations.This is crucial for proper performance when working with RF coaxial connectors.
Features
- Fixed Torque Type
- Break Over Design Type
- 27mm Hex Size
- 20 in - lbs Torque Setting
- +0.8 in - lbs Torque Accuracy
- Handle Color: Blue
- Wrench Head Material: Steel
- Wrench Head Plating: Nickel
- Handle Material: Blue Anodized Aluminum
What is a torque wrench and why should I use it?
A torque wrench is a coax connector prep tool that prevents damage to equipment from over tightening or signal loss.
What is the difference between click type and break over style?
Break-Over torque wrenches feature a unique pivoting joint that “breaks” when the preset torque force has been reached. This prevents the connector from being over tightened and damaged.
Click type design torque wrenches helps to limit connector's torque ratings to the to the correct amount by alerting the user when the pre-set torque limit for connectors is reached.
| SKU | Connector | Style | Pre Set | Bit Size |
|---|---|---|---|---|
| PE5011-5 | SSMA | Click Type | 8 in-lbs | 1/4 Bit |
| PE5019-19A | SSMA | Click Type | 5 in-lbs | 5/16 Bit |
| PE5019-6 | N | Break Over | 14 in-lbs | 25/32 Bit |
| PE5019-12 | SSMC | Break Over | 2 in-lbs | 5/32 Bit |
| PE5011-6 | N, SC | Click Type | 14 in-lbs | 13/16 Bit |
| PE5011-3 | 7MM, N | Click Type | 14 in-lbs | 3/4 Bit |
| PE5019-18 | TNC | Break Over | 6 in-lbs | 5/8 Bit |
| PE5019-11 | SMC | Break Over | 3 in-lbs | 15/64 Bit |
| PE5019-10 | TNC | Break Over | 12 in-lbs | 5/8 Bit |
| PE5019-16 | 1.0mm | Break Over | 4 in-lbs | 15/64 Bit |
| PE5011-4 | TNC | Click Type | 14 in-lbs | 5/8 Bit |
| PE5019-5 | N | Break Over | 8 in-lbs | 8 Bit |
| PE5011-8 | TNC | Click Type | 13 in-lbs | 9/16 Bit |
| PE5011-2 | SMC | Click Type | 3 in-lbs | 1/4 Bit |
| PE5019-21 | 7/16 DIN | Break Over | 20 in-lbs | 27mm Bit |
| PE5019-9 | TNC | Break Over | 12 in-lbs | 9/16 Bit |
| PE5019-4 | N, 7mm | Break Over | 14 in-lbs | 3/4 Bit |
| PE5019-13 | SSMA | Break Over | 5 in-lbs | 1/4 Bit |
| PE5019-17 | TNC | Break Over | 6 in-lbs | 9/16 Bit |
| PE5019-14 | SSMA | Break Over | 8.1 in-lbs | 1/4 Bit |
| PE5019-3 | SSMA | Break Over | 8 in-lbs | 3/4 Bit |
| PE5019-1A | 3.5mm, 2.92mm, 2.4mm, SMA | Break Over | 8 in-lbs | 5/16 Bit |
| PE5011-7 | N | Click Type | 14 in-lbs | 20mm Bit |
| PE5019-8 | N, SC | Break Over | 14 in-lbs | 13/16 Bit |
| PE5019-7 | N, SC | Break Over | 8 in-lbs | 13/16 Bit |
