Pasternack PE5011-2 - Fixed Click Type Torque Wrench With 1/4 Bit For SMC Connectors Pre-set to 3 in-lbs
This product has been discontinued

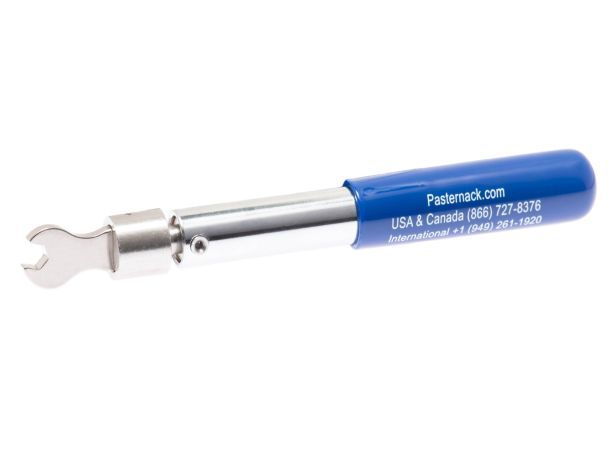

Pasternack PE5011-2 Fixed Click Type Torque Wrench
The Premium Pasternack PE5011-2 is a fixed click type torque wrench for RF applications. It includes a 1/4 bit for SMC connectors and has a pre-set torque of 3 inch pounds. This prevents over-tightening of connectors and ensures that your connectors match the manufacturer’s recommendations. This is crucial for proper performance when working with RF coaxial connectors. Pasternack torque wrenches are engineered to the tightest of tolerance for a lifetime of service.
Features
- Fixed Torque Type
- Click Type Design Type
- 1/4 in Hex Size
- 3 in - lbs Torque Setting
- +4% Torque Accuracy
Size
- Length: 6.8 in (172.72 mm)
- Handle Diameter: 0.77 in (19.56 mm)
- Weight: 0.357 lbs (161.93 g)
- Handle Color: Blue
What is a torque wrench and why should I use it?
A torque wrench is a coax connector prep tool that prevents damage to equipment from over tightening or signal loss.
What is the difference between click type and break over style?
Break-Over torque wrenches feature a unique pivoting joint that “breaks” when the preset torque force has been reached. This prevents the connector from being over tightened and damaged.
Click type design torque wrenches helps to limit connector's torque ratings to the to the correct amount by alerting the user when the pre-set torque limit for connectors is reached.
| SKU | Connector | Style | Pre Set | Bit Size |
|---|---|---|---|---|
| PE5011-5 | SSMA | Click Type | 8 in-lbs | 1/4 Bit |
| PE5019-19A | SSMA | Click Type | 5 in-lbs | 5/16 Bit |
| PE5019-6 | N | Break Over | 14 in-lbs | 25/32 Bit |
| PE5019-12 | SSMC | Break Over | 2 in-lbs | 5/32 Bit |
| PE5011-6 | N, SC | Click Type | 14 in-lbs | 13/16 Bit |
| PE5011-3 | 7MM, N | Click Type | 14 in-lbs | 3/4 Bit |
| PE5019-18 | TNC | Break Over | 6 in-lbs | 5/8 Bit |
| PE5019-11 | SMC | Break Over | 3 in-lbs | 15/64 Bit |
| PE5019-10 | TNC | Break Over | 12 in-lbs | 5/8 Bit |
| PE5019-16 | 1.0mm | Break Over | 4 in-lbs | 15/64 Bit |
| PE5011-4 | TNC | Click Type | 14 in-lbs | 5/8 Bit |
| PE5019-5 | N | Break Over | 8 in-lbs | 8 Bit |
| PE5011-8 | TNC | Click Type | 13 in-lbs | 9/16 Bit |
| PE5011-2 | SMC | Click Type | 3 in-lbs | 1/4 Bit |
| PE5019-21 | 7/16 DIN | Break Over | 20 in-lbs | 27mm Bit |
| PE5019-9 | TNC | Break Over | 12 in-lbs | 9/16 Bit |
| PE5019-4 | N, 7mm | Break Over | 14 in-lbs | 3/4 Bit |
| PE5019-13 | SSMA | Break Over | 5 in-lbs | 1/4 Bit |
| PE5019-17 | TNC | Break Over | 6 in-lbs | 9/16 Bit |
| PE5019-14 | SSMA | Break Over | 8.1 in-lbs | 1/4 Bit |
| PE5019-3 | SSMA | Break Over | 8 in-lbs | 3/4 Bit |
| PE5019-1A | 3.5mm, 2.92mm, 2.4mm, SMA | Break Over | 8 in-lbs | 5/16 Bit |
| PE5011-7 | N | Click Type | 14 in-lbs | 20mm Bit |
| PE5019-8 | N, SC | Break Over | 14 in-lbs | 13/16 Bit |
| PE5019-7 | N, SC | Break Over | 8 in-lbs | 13/16 Bit |
