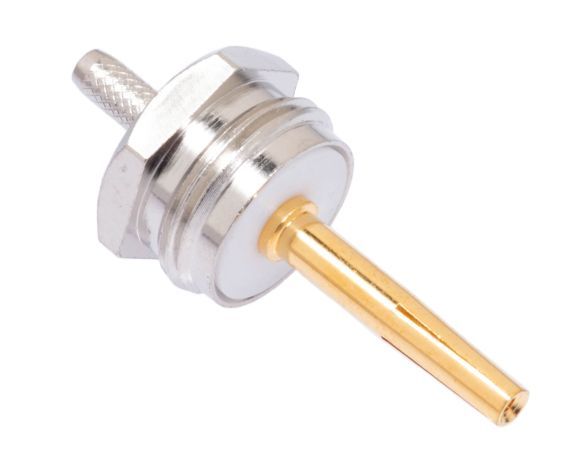

Pasternack PE4442 - N Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch, .640 inch DD Hole
| Quantity Discount Pricing | |||
|---|---|---|---|
| 1-24 | 25-49 | 50-99 | 100+ |
| $37.59 | $35.99 | $34.19 | $32.59 |
Quantity Available: 48
The Premium Pasternack PE4442 N Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100 is a high-grade solution for adapting existing connections on your cables and equipment. With a maximum frequency of 6GHz, this 50 Ohm adapter provides unsurpassed quality and reliability for your mission-critical systems.
Features
- Connector A: N Female Bulkhead Mount (MIL-STD-348A)
- RG174, RG316, RG188, LMR-100, PE-B100, PE-C100 interface type
- 50 Ohm
- 6GHz Max Frequency
- 1.5:1 Max VSWR
- 500 Vrms
- Gold Plated Beryllium Copper Pin
- Nickle Plated Brass Outer Conductor
- Nickle Plated Brass Body
- Temperature Range: -65C to 165C (-85F to 329F)
- RoHS and REACH Certified
- Pasternack PE4442
