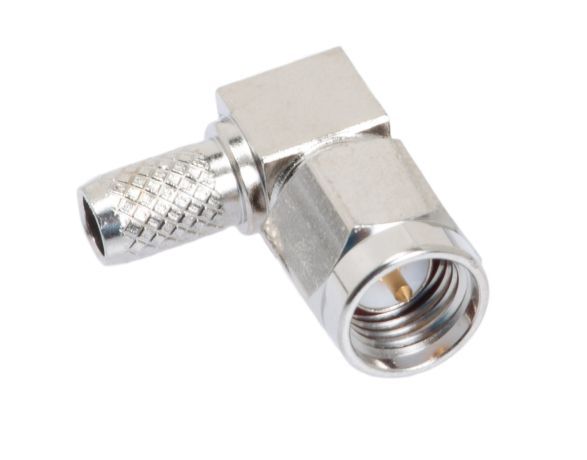

Pasternack PE4405 - SMA Male Right Angle Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch
| Quantity Discount Pricing | |||
|---|---|---|---|
| 1-24 | 25-49 | 50-99 | 100+ |
| $16.79 | $16.19 | $15.39 | $14.79 |
Quantity Available: 3
The Premium Pasternack PE9082 SMA Male Right Angle Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195, PE-P195, LMR-195 is a high-grade solution for adapting existing connections on your cables and equipment. With a maximum frequency of 12.4GHz, this 50 Ohm adapter provides unsurpassed quality and reliability for your mission-critical systems.
Features
- Connector A: SMA Male Right Angle (MIL-STD-348A)
- RG58, RG303, RG141, PE-C195, PE-P195, LMR-195 Interface Type
- 50 Ohm
- 12.4GHz Max Frequency
- 1.4:1 Max VSWR
- 500 Vrms
- Gold Plated Brass Pin
- Nickle Plated Brass Outer Conductor
- Nickle Plated Brass Body
- Temperature Range: -65C to 165C (-85F to 329F)
- RoHS and REACH Certified
- Pasternack PE9082
