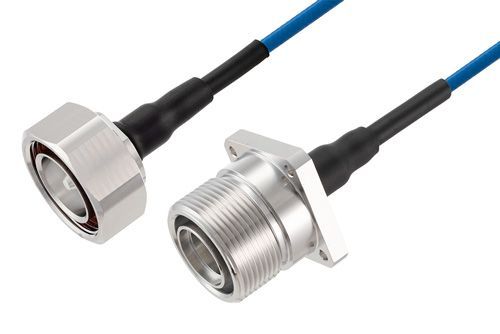

Pasternack 7/16 DIN Male to 7/16 DIN Female 4 Hole Flange Low PIM Cable 36 Inch Length Using TFT-402 Coax Using Times Microwave Components

SKU
PE3C7962-36

Max Frequency 5.8 GHz | Low PIM: -160 dBc Max | Shielding Effectivity > -80 dB | 76% Phase Velocity | Double Shielded | FEP Jacket | 500 Mating Cycles | 36 Inch Length

Quantity Discount Pricing
1-24 25-49 50-99 100+
$75.99 $75.99 $72.99 $68.99



7/16 DIN Male to 7/16 DIN Female 4 Hole Flange Low PIM Cable 36 Inch Length Using TFT-402 Coax Using Times Microwave Components

Radio frequency assembly 7/16 DIN male to 7/16 DIN female 4 hole flange low PIM cable 36 inch length using TFT-402 coax using Times Microwave components from Pasternack is part of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack low PIM (Passive Intermodulation, also called Intermod for short) coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. 7/16 DIN male to 7/16 DIN female 4 hole flange low PIM cable 36 inch length using TFT-402 coax using Times Microwave components, like our other Pasternack coaxial cable assemblies, will ship the same day and any custom 7/16 DIN to 7/16 DIN cable assembly orders will ship same day as well.

Pasternack RF coax low PIM cable assembly is built with 7/16 DIN cable connection on one end and 7/16 DIN 4 hole flange cable connection on the other. Our low PIM 7/16 DIN to 7/16 DIN cable assemblies have a male gender on end 1 and female on end 2. This 7/16 DIN to 7/16 DIN cable is a male to female coax assembly, PE3C7962-36, can also be known as a low PIM 7/16 DIN plug to 7/16 DIN jack cable assembly and will be shipped same-day as it is purchased.

7/16 DIN plug to 7/16 DIN jack cable assembly PE3C7962-36 is built with TFT-402 which is a flexible coax type. The Pasternack low passive intermodulation flexible 7/16 DIN cable assembly is manufactured with 7/16 DIN to 7/16 DIN cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this 5.8 GHz maximum frequency low PIM 7/16 DIN male to 7/16 DIN female 4 hole flange cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3C7962-36 can also be used in the other direction and will be 7/16 DIN female 4 hole flange to 7/16 DIN male cable assembly if the opposite connectivity is required.

Applications:

  • General Purpose
  • Laboratory Use
  • Low PIM Applications
  • Indoor and Outdoor Use
  • Plenum Rated Applications
