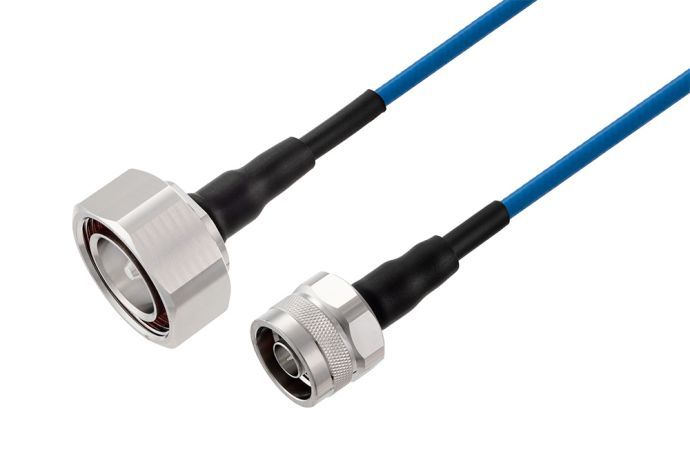

Pasternack 7/16 DIN Male to N Male Low PIM Cable 60 Inch Length Using TFT-402 Coax Using Times Microwave Components
Max Frequency 5.8 GHz | Low PIM: -160 dBc Max | Shielding Effectivity > -80 dB | 76% Phase Velocity | Double Shielded | FEP Jacket | 60 Inches
| Quantity Discount Pricing | |||
|---|---|---|---|
| 1-24 | 25-49 | 50-99 | 100+ |
| $81.99 | $77.99 | $73.99 | $70.99 |
Pasternack 7/16 DIN Male to N Male Low PIM Cable 60 Inch Length Using TFT-402 Coax Using Times Microwave Components
Radio frequency assembly 7/16 DIN male to N male low PIM cable 60 inch length using TFT-402 coax using Times Microwave components from Pasternack is part of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack low PIM (Passive Intermodulation, also called Intermod for short) coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. 7/16 DIN male to N male low PIM cable 60 inch length using TFT-402 coax using Times Microwave components, like our other Pasternack coaxial cable assemblies, will ship the same day and any custom 7/16 DIN to N type cable assembly orders will ship same day as well.
Pasternack RF coax low PIM cable assembly is built with 7/16 DIN cable connection on one end and type N cable connection on the other. Our low PIM 7/16 DIN to type N cable assemblies have a male gender on end 1 and male on end 2. This 7/16 DIN to type N cable is a male to male coax assembly, PE3C8269-60, can also be known as a low PIM 7/16 DIN plug to N type plug cable assembly and will be shipped same-day as it is purchased.
7/16 DIN plug to type N plug cable assembly PE3C8269-60 is built with TFT-402 which is a flexible coax type. The Pasternack low passive intermodulation flexible 7/16 DIN cable assembly is manufactured with 7/16 DIN to type N cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this 5.8 GHz maximum frequency low PIM 7/16 DIN male to N type male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3C8269-60 can also be used in the other direction and will be type N male to 7/16 DIN male cable assembly if the opposite connectivity is required.
Applications:
- General Purpose
- Laboratory Use
- Low PIM Applications
- Indoor and Outdoor Use
- Plenum Rated Applications
