Passive CWDM, Single LGX Mux & DeMux, 8 Ch F (skip 1391-1411nm) 20nm space, start ch 1270nm, LC/UPC, w/ PASS & MON (1%)
Passive CWDM Filter | 8 Channel | 1271nm to 1451nm | Skips 1391nm and 1411nm | Combo Mux and DeMux | 1% Power Monitor Port | PASS/Express Option
| Quantity Discount Pricing | ||
|---|---|---|
| 1-9 | 10-24 | 25+ |
| $1,550.00 | $1,530.00 | $1,510.00 |
Passive CWDM, Single LGX Mux & DeMux, 8 Ch F (skip 1391-1411nm) 20nm space, start ch 1270nm, LC/UPC, w/ PASS & MON (1%)

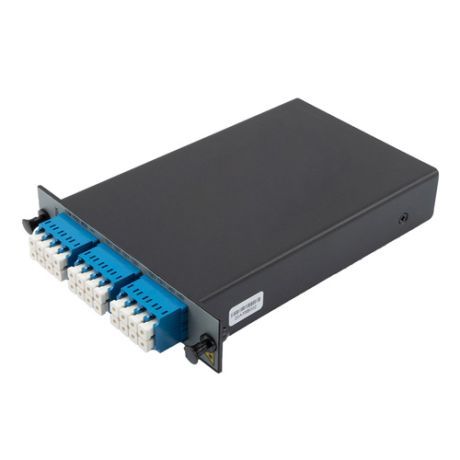

The CWC-8F327-00461L from ECore is a CWDM Passive Filter with 8 CWDM Channels. The ECore CWC-8F327-00461L is a single LGX cassette filter with Combo Mux & DeMux functionality. The CWC-8F327-00461L has 8 channels:1271, 1291, 1311, 1331, 1351, 1371, 1431 and 1451nm (skipping 1391 and 1411nm) starting with 1271nm and with 20nm spacing. The ECore CWC-8F327-00461L has LC/UPC connectors and has Monitor port option on Mux and Demux and a PASS port to carry the unused CWDM channels through. The ECore CWC-8F327-00461L is a dual fiber filter with one sending a muxed signal and the other receiving a composite signal for demuxing. ECore produces the highest quality passive filters that you can rely on and our products are continually in stock and ship the same-day. ShowMeCables technical support and knowledgeable sales team can get you to the right parts for the job. Order today!
Features:
- Passive CWDM Filter
- 8 Channels (skipping 1391 & 1411nm)
- Starting with channel 1271nm; Ending at 1451nm
- 20nm spacing
- Single LGX Cassette
- Two Fiber Mux & Demux Combo
- LC/UPC connectors
- 1% Monitor option
- PASS/Express Option
Applications:
- Single Mode Fiber Networking
- Dual Fiber
- Side by Side Mux and Demux functions
- Metro transport
- Regional Distribution
- Inside Plant (ISP) Operation
