Passive CWDM, Single LGX Mux, 4CH w/ 20nm spacing, start ch 1550nm, LC/UPC, w/ MON (1%) & Pass, Single fiber
Passive CWDM Filter | 4 Channel | 1551nm to 1611nm | 20nm Spacing | Single Fiber Mux | 1% Power Monitor Port | PASS/Express Option
| Quantity Discount Pricing | ||
|---|---|---|
| 1-9 | 10-24 | 25+ |
| $595.00 | $590.00 | $585.00 |
Passive CWDM, Single LGX Mux, 4CH w/ 20nm spacing, start ch 1550nm, LC/UPC, w/ MON (1%) & Pass, Single fiber

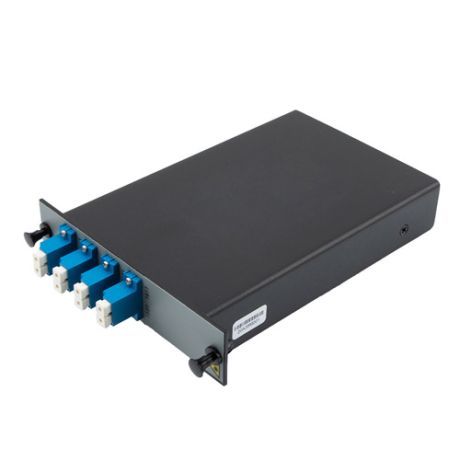

The CWM-04355-00461L from ECore is a CWDM Passive Filter with 4 CWDM Channels. The ECore CWM-04355-00461L is a single LGX cassette filter with Mux functionality. The CWM-04355-00461L has 4 channels:1551, 1571, 1591, and 1611nm, starting with 1551nm and with 20nm spacing. The ECore CWM-04355-00461L has LC/UPC connectors, a Monitor port option, and a PASS port to carry the unused CWDM channels through. The ECore CWM-04355-00461L is a single fiber filter for sending channels muxed into a COM signal. ECore produces the highest quality passive filters that you can rely on and our products are continually in stock and ship the same-day. ShowMeCables technical support and knowledgeable sales team can get you to the right parts for the job. Order today!
Features:
- Passive CWDM Filter
- 4 Channels
- Starting with channel 1551nm; Ending at 1611nm
- 20nm spacing
- Single LGX Cassette
- Single Fiber Mux
- LC/UPC connectors
- 1% Monitor option
- PASS/Express Option
Applications:
- Single Mode Fiber Networking
- Single Fiber Mux Functions
- Metro transport
- Regional Distribution
- Inside Plant (ISP) Operation
