Passive DWDM Filter | 8 Channel (28-35) | Start Channel 28 (1554.94nm) | Mux and Demux | With Pass and Monitor
| Quantity Discount Pricing | ||
|---|---|---|
| 1-9 | 10-24 | 25+ |
| $2,090.00 | $2,070.00 | $2,040.00 |

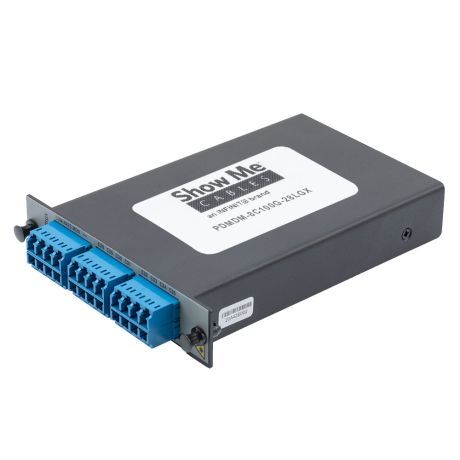

The ShowMeCables PDMDM-8C100G-28LGX is a passive DWDM Multiplexer filter, it works by combining and transmitting multiple signals simultaneously at different wavelengths on the same fiber. The PDMDM-8C100G-28LGX is a 1RU LGX filter with Combo Mux/DeMux functionality. No optical signal amplifiers nor dispersion compensation modules (DCM) are used in PDMDM-8C100G-28LGX.
The PDMDM-8C100G-28LGX has 8 DWDM channels: i.e. ITU CH20-59 starting with Channel 28 (1554.940nm) and with 100GHz channel spacing. This passive DWDM Multiplexer filter has LC/UPC connectors, a Standard connection In Series is used with a Push-On connector type, and it has a Monitor port option on the Mux and DeMux module.
The PDMDM-8C100G-28LGX is a dual fiber filter with one sending muxed signal and the other receiving a composite signal for demuxing. The passive DWDM filter marks its presence in Single Mode Fiber Networking, Metro transport, Regional Distribution & Inside Plant (ISP) Operation as it increases bandwidth between switches and routers without additional fiber investment. The passive DWDM multiplexer filter has an operating wavelength of 1527.220 to 1564.680 nm with a min Pass Band of 0.680 nm and max Pass Band of 0.680 nm.
The DWDM filters offered by ShowMeCables are high quality passive filters that your business can rely on. ShowMeCables multiplexer has the largest In-stock selection of passive DWDM multiplexers, with same-day shipment for domestic and international orders. Our expert technical support and knowledgeable sales team can get you to the right DWDM multiplexer for the job.
Features:
Applications:
