Passive CWDM, Single LGX Mux & DeMux, 4CH 20nm space, start ch 1550nm, LC/UPC, w/ PASS & MON (1%)
Passive CWDM Filter | 4 Channel | 1551nm to 1611nm | Combo Mux and DeMux | 1% Power Monitor Port | PASS/Express Option
Quantity Discount Pricing | ||
---|---|---|
1-9 | 10-24 | 25+ |
$970.00 | $965.00 | $955.00 |
Passive CWDM, Single LGX Mux & DeMux, 4CH 20nm space, start ch 1550nm, LC/UPC, w/ PASS & MON (1%)

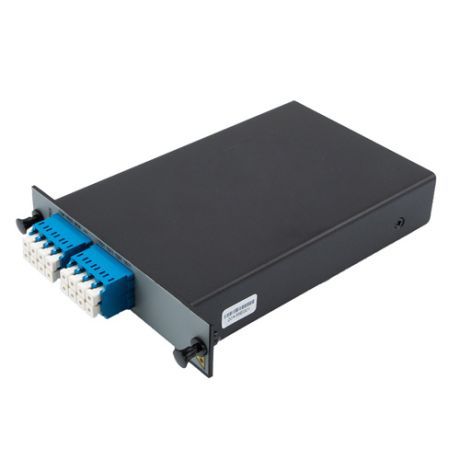

The CWC-04355-00461L from ECore is a CWDM Passive Filter with 4 Channels. The ECore CWC-04355-00461L is a single LGX cassette filter with Combo Mux & DeMux functionality. The CWC-04355-00461L has 4 channels:1551, 1571, 1591, and 1611nm, starting with 1551nm and with 20nm spacing. The ECore CWC-04355-00461L has LC/UPC connectors and has Monitor port option on Mux and Demux and a PASS port to carry the unused CWDM channels through. The ECore CWC-04355-00461L is a dual fiber filter with one sending a muxed signal and the other receiving a composite signal for demuxing. ECore produces the highest quality passive filters that you can rely on and our products are continually in stock and ship the same-day. ShowMeCables technical support and knowledgeable sales team can get you to the right parts for the job. Order today!
Features:
- Passive CWDM Filter
- 4 Channels
- Starting with channel 1551nm; Ending at 1611nm
- 20nm spacing
- Single LGX Cassette
- Two Fiber Mux & Demux Combo
- LC/UPC connectors
- 1% Monitor option
- PASS/Express Option
Applications:
- Single Mode Fiber Networking
- Dual Fiber
- Side by Side Mux and Demux functions
- Metro transport
- Regional Distribution
- Inside Plant (ISP) Operation
