Passive CWDM, Rugged Field Cassette Demux, 16 Ch 20nm spacing, Start ch 1270nm, 1m 900um leads
Ruggedized Passive CWDM Filter | 16 Channel | 1271nm to 1691nm | Skips 1391nm & 1411nm | 20nm Spacing | Single Fiber Demux
| Quantity Discount Pricing | ||
|---|---|---|
| 1-9 | 10-24 | 25+ |
| $1,400.00 | $1,390.00 | $1,380.00 |
Passive CWDM, Rugged Field Cassette Demux, 16 Ch 20nm spacing, Start ch 1270nm, 1m 900um leads

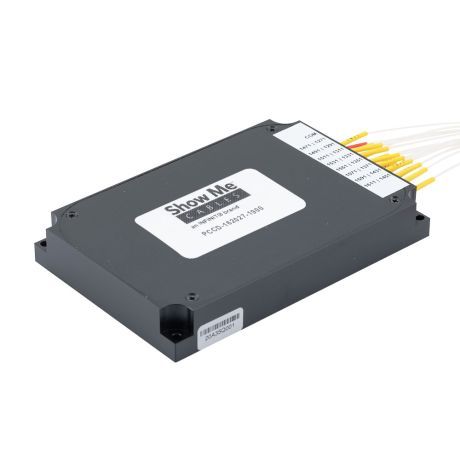

The PCCD-162027-1900 from ShowMeCables is a CWDM Passive Filter with 16 CWDM Channels. The PCCD-162027-1900 is a 120x85x20mm field cassette filter with demux functionality. The PCCD-162027-1900 is rated for industrial temperature function (-40c to +85c) for applications such as outside plant installation. The PCCD-162027-1900 has 16 channels: 1271, 1291, 1311, 1331, 1351, 1371, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591, and 1691nm (skipping 1391 and 1411nm), starting with 1271nm and with 20nm spacing. The PCCD-162027-1900 has 1 meter 900um buffer fiber leads. The PCCD-162027-1900 is a single fiber filter for demuxing channels from a COM signal. ShowMeCables produces the high quality passive filters that your business can rely on. With products continually in stock and same-day shipping, our expert technical support and knowledgeable sales team can get you to the right parts for the job.
Features:
- Passive
- CWDM
- 20nm spacing
- Rugged Field Cassette (120x85x20mm)
- Single Fiber Demux
- 16 Channels (skipping 1391 & 1411nm)
- Starting with channel 1271nm
- 1m 900um fiber leads
- industrial temperature (-40c ~ 85c)
Applications:
- Single Mode Fiber Networking
- Single Fiber
- Demux function
- Metro transport
- Regional Distribution
- Outside Plant (OSP) Operation
