Passive CWDM, Ruggedized Field Cassette Demux, 4 Ch 20nm spacing, Start ch 1550nm, 1m 900um leads, Pass Port

Passive CWDM, Ruggedized Field Cassette Demux, 4 Ch 20nm spacing, Start ch 1550nm, 1m 900um leads, Pass Port

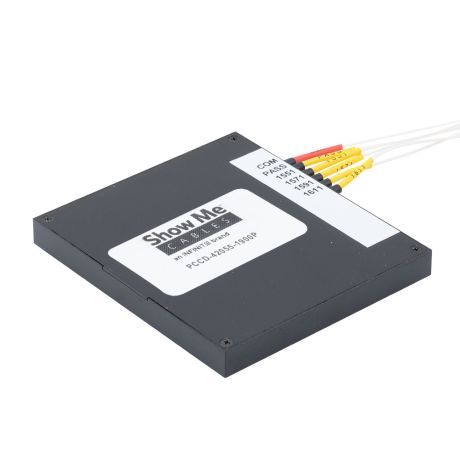

The ShowMeCables PCCD-42055-1900P is a CWDM Passive Filter with 4 CWDM Channels. The PCCD-42055-1900P is a 85x75x8.5mm field cassette filter with demux functionality.  The PCCD-42055-1900P is rated for industrial temperature function (-40c to +85c) for applications such as outside plant installation. The PCCD-42055-1900P has 4 channels: 1551, 1571, 1591, and 1611nm, starting with 1551nm and with 20nm spacing. The PCCD-42055-1900P has 1 meter 900um buffer fiber leads. The PCCD-42055-1900P is a single fiber filter for demuxing channels from a COM signal. The PCCD-42055-1900P from ShowMeCables includes the optional Pass fiber for carrying the CWDM channels not present in this filter. ShowMeCables produces the high quality passive filters that your business can rely on. With products continually in stock and same-day shipping, our expert technical support and knowledgeable sales team can get you to the right parts for the job.

Features:

• Passive
• CWDM
• 20nm spacing
• Rugged Field Cassette (85x75x8.5mm)
• Single Fiber Demux
• 4 Channels
• Starting with channel 1551nm
• 1m 900um fiber leads
• Pass fiber for unused CWDM channels
• industrial temperature (-40c ~ 85c)

Applications:

• Single Mode Fiber Networking
• Single Fiber
• Mux function
• Metro transport
• Regional Distribution
• Outside Plant (OSP) Operation
