Outdoor 300 to 75 ohm Matching Transformer - UHF/VHF/FM
SKU
704
F-Type Female | 2 Spade Male Terminals | AC/DC Blocking | Shielded | Balanced | Outdoor Use
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-24 | 25-49 | 50+ |
| $4.83 | $4.58 | $4.33 | $4.07 | $3.83 |

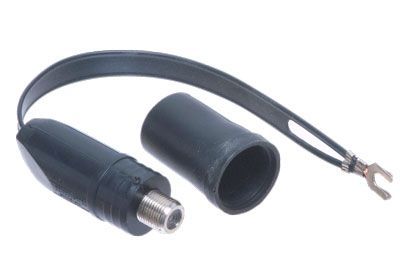

Outdoor 300 to 75 ohm Transformer Balun - UHF/VHF/FM
This Outdoor Matching Transformer is used to convert 75 Ohm connections into 300 Ohm connections. It is often used on old VCR's and TV's with F inputs and it is converted to external antennas. This allows you to run your signal longer distances without losing quality. It contains a completely plastic molded construction making it weather-proof.
Features:
- Connector 1: F-Type Female
- Connector 2: Two Spade Terminals - Male
- AC/DC Blocking
- Shielded and Balanced
- Minimal Direct Pick-up
- Outdoor Use
Write Your Own Review
Product Questions
What is the frequency range?
5-900 MHz or 5-2500 MHz?
5-900 MHz or 5-2500 MHz?
Question by: Jack Schetrom on May 27, 2020, 12:06 PM
The frequency range is 5-900 MHz.
Answer by: Jeff Johnston on May 27, 2020, 12:15 PM
Q: What is a balun?
A: A balun is a small transformer which converts an audio or video signal from unbalanced to balanced and vice versa (hence the term 'bal*un'). By doing so baluns make the necessary impedance adjustment for audio-visual signal transmission between different wiring systems
| Features & Specs | ||
|---|---|---|
| Connectors | The connector type on one side.? | F-Type Female |
| Connectors | The connector type on one side.? | 2 x Spade Terminals - Male |
| Gauge | The size of the wire.? | 8 AWG |
| Insertion Loss | The amount of reduction in signal strength during transmission.? | 0 dB |
| Return Loss | The amount of loss when the signal discontinues at a connector. More return loss indicates a better connection link.? | 30 dB |
| Bandwidth | The range of frequencies the signal uses.? | 900 MHz |
| Impedance | Impedance of cable.? | 75 Ohm |
| Grounding Hole | The size of the grounding hole.? | 3/16' |
