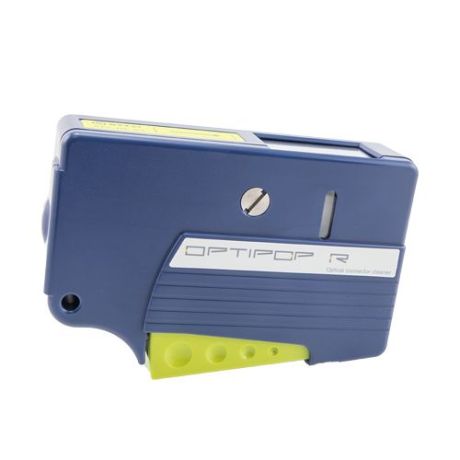

The Cassette Cleaner is intended for use on the exposed ferrules of fiber optic connectors. This particular one is designed to be used with 1.25mm and 2.5mm ferrule connectors. Such as, SC, FC, ST, MU, LC and MT style connectors. It can also be used on MPO/MTP and MT-RJ connectors without the alignment pins. The pre-washed microfiber cloth tape removes microscopic dust, debris, oil, and other contaminants which can attenuate optical signals and increase bit error rates.
Features:
Compact and Lightweight Design
Consistant and Effective End-Face Cleaning
400+ Cleanings Per Unit
Squeeze Trigger to Advance Cleaning Ribbon
See the Resources Tab For Optimal Cleaning Recommendations
• Only pull the trigger once to get a new section of cleaning ribbon. The gear system of the OPTIPOP R Cassettes is designed to advance enough of the cleaning ribbon to get a completely new section into the cleaning window with a single engagement.
• Do not try to reuse the cleaning ribbon. Contamination removed from the first use of cleaning ribbon will be reapplied if an operator tries to flip over and reload the old cleaning back into the cassette.
• If a wet-dry cleaning is needed, apply a small drop the cleaning fluid onto the cleaning ribbon. Always start by putting the ferrule into the wet area on the ribbon and wiping towards the opposite side of cleaning window to finish in the dry section.
