N Male to SMA Female Adapter
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $14.39 | $11.59 | $10.39 | $9.09 | $7.89 |
Quantity Available: 1109

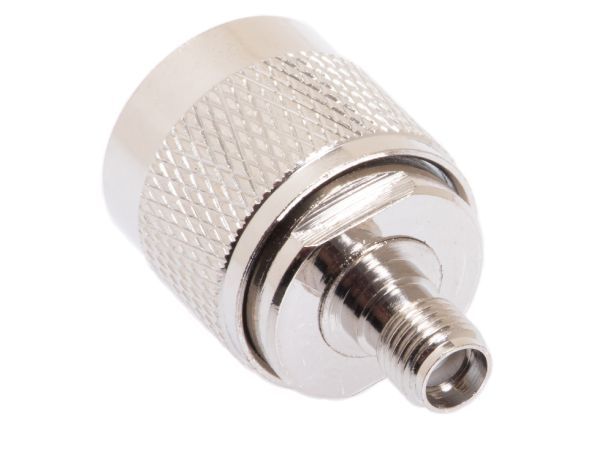

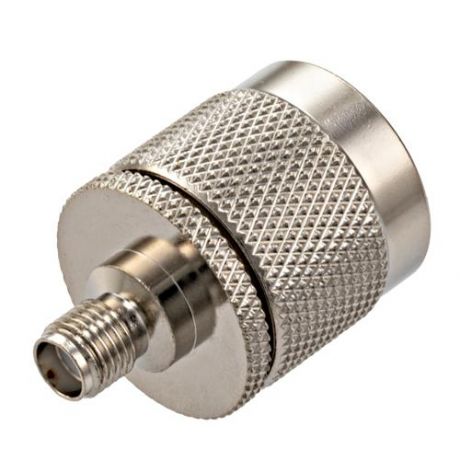

Coax adapters are the perfect way to quickly change the gender or connector type on an already terminated cable. This nickel-plated coaxial adapter has an N male connector opposite an SMA female connector.
Features:
- Connector A: N Male
- Connector B: SMA Female
- Brass body
- Nickel-plated
Q: What is and N connector?
A: An N connector is a threaded RF connector.
Q: What is an N connector commonly used for?
A: An N connector is commonly used on wireless and cellular base stations.
Q: Is an N connector weatherproof?
A: Yes Male N connectors have a rubber o-ring inside of them making them weatherproof.
Q: How can I tell the difference between a 50 and 75 Ohm N connector?
A: You can tell the difference by the center pin. A 50 Ohm connector has a pointed pin. A 75 Ohm has a rounded pin.
Q: What is an SMA connector?
A: Subminiature A or SMA connectors are a threaded RF connector.
Q: What is an SMA connector commonly used for?
A: An SMA connector is commonly used in GPS wireless LAN telecommunication and testing instruments.
Q: How can I tell the difference between standard and reverse polarity connectors?
- A standard male will be internally threaded with a male pin.
- A standard female will be externally threaded and accept a pin.
- A reverse polarity male will be internally threaded and accept a pin.
- A reverse polarity female will be externally threaded with a male pin.
| Features & Specs | ||
|---|---|---|
| Adapter Type | The type of adapter? | N to SMA |
| Form factor | The form factor of this connector? | Straight |
| Gender | The gender of this connector? | Male to Female |
| Material | The material this connector is made from? | Brass with nickel plating |
