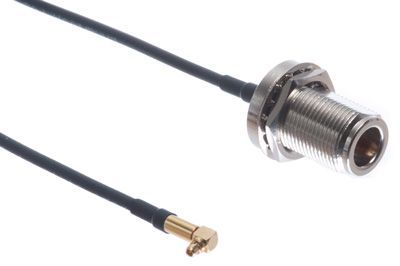

N Female Bulkhead to MMCX Male Right Angle Low Loss 100 Coaxial Assembly

50 Ohm Wi-Fi Pigtail | Solid Bare Copper Covered Steel | Polyethylene Jacket | LMR-100 Equivalent

Low Loss 100 Cable - 8IN N Female Bulkhead to Right Angle MMCX Male

Designed to deliver high performance with minimal loss, Low Loss 100 (LMR-100 equivalent) assemblies are thin, light, and flexible.  Low Loss 100 is a high quality alternative to RG-174 when you need the maximum signal integrity.  With a durable Polyethylene jacket, these cables are suited for indoor and outdoor installations.


  • Connector 1: N Female Bulkhead
  • Connector 2: MMCX Right Angle
  • Cable Type: ShowMeCable Low Loss 100 (LMR-100 Equivalent)
  • 50 Ohm
  • Polyethylene (PE) Jacket suitable for Indoor or Outdoor Use
  • Applications: Wi-Fi, Antenna Cables, Ham Radio, Patch Cables, Jumper Cables, WLL, GPS, WLAN, LMR, WISP, WiMax, SCADA, Mobile Antennas
    Write Your Own Review
    You're reviewing:N Female Bulkhead to MMCX Male Right Angle Low Loss 100 Coaxial Assembly
    Your Rating

    Q: What is a Reverse Polarity Connector?

    A: A Reverse Polarity Connector alters a standard connector by utilizing a male pin center conductor in a female housing or a female pin in a male housing. This prevents mating with a standard non-polarized connector.

    Q: What is the difference between Low Loss 100 and LMR100

    A: The only difference between Low Loss 100 and LMR100 is the manufacture.  Both cables are made out of the same materials with the same loss characteristics.

    Wi-Fi Cable Connector Resource

    Connector Type

    Front View

    Profile View

    Reverse Polarity SMA

    Standard SMA

    Reverse Polarity TNC

    Standard TNC

    Standard BNC

    Standard FME

    Standard N Series

    Standard UHF
