Miniature High Definition Coax Snake Cable - 23 AWG

80-523-907 XX
75 Ohm | 23 AWG | Solid Center Conductor | CM Rated | Indoor Use | 95% Shield | UL Listed

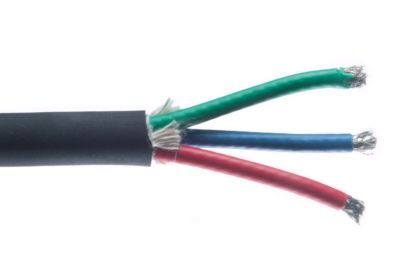

The mini high definition coax snake cable contains video cables colored in red green and blue for component video applications. This cable is UL rated for in-wall use and sweep tested to 3 GHz for optimal performance. It is shielded by a 100% aluminum and 95% braid eliminating unwanted intereference. Foot markings on the outer jacket make measuring length easy. Save time, space and money by running 1 cable instead of 3 individual cables.


  • 23 AWG Coax
  • 75 Ohm
  • Red, green, blue jacket colors
  • Solid center conductors
  • 95% Braid
  • CM Rated PVC Jacket
  • UL Listed
  • Indoor use
  • Foot markings
  • Sold per foot
  • Max Continuous Length: 1000 FT

Please note: All products that are bought per foot are non-returnable.

Any amount of cable you order above the maximum continuous length of 1000 FT will be sent in separate pieces.

Write Your Own Review
You're reviewing:Miniature High Definition Coax Snake Cable - 23 AWG
Your Rating
Features & Specs
Cable TypeThe type of cable described?3 Conductor Mini Coax
ImpedanceImpedance of cable?75 ohms
Center ConductorThe type of material used in the center conductor of the cable??Bare Copper
Center Conductor DiameterDiameter of center conductor in inches?.105'
DielectricMaterial used as dielectric in the cable??Solid PE (Polyethylene)
Jacket MaterialThe type of material used in the jacket of the cable?Polyvinyl chloride (PVC)
Cable DiameterDiameter in inches of cable?.290'
Operating Temperature RangeRange of temperature the cable is designed to withstand?-4/+140°F
